General Specifications

The reliability test items and its conditions are shown in below.

Details

The static contrast ratio definition, the viewing angles are defined at the angle that the contrast ratio is larg

er than 10 at four directions relative to the perpendicular direction of theAnsun’s module (two vertical angles: up θy+ a

nd down θy-; and two horizontal angles: right θx+ and left θx-). The standard setup of measurement is shown in Figure

8 & 9

Mechanical Outline Dimension

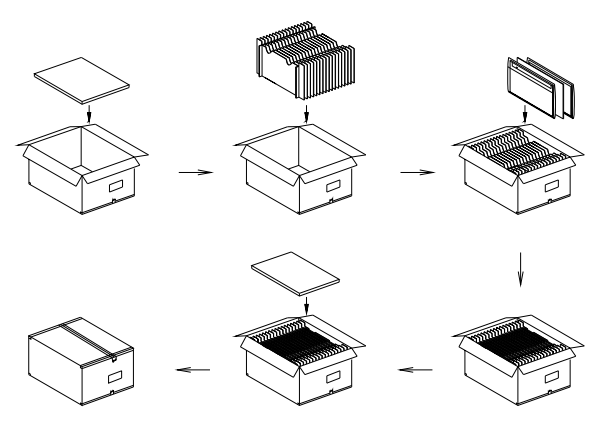

PACKING

STORAGE

(1) Do not leave the module in high temperature, and high humidity for a long time. It is highly recomme

nded to store the module with temperature from 0 to 35℃and relative humidity of less than 70%.

(2) Do not store the TFT-LCD module in directsunlight.

(3) The module shall be stored in a dark place. It is prohibited to apply sunlight or fluorescent light during

the store.
