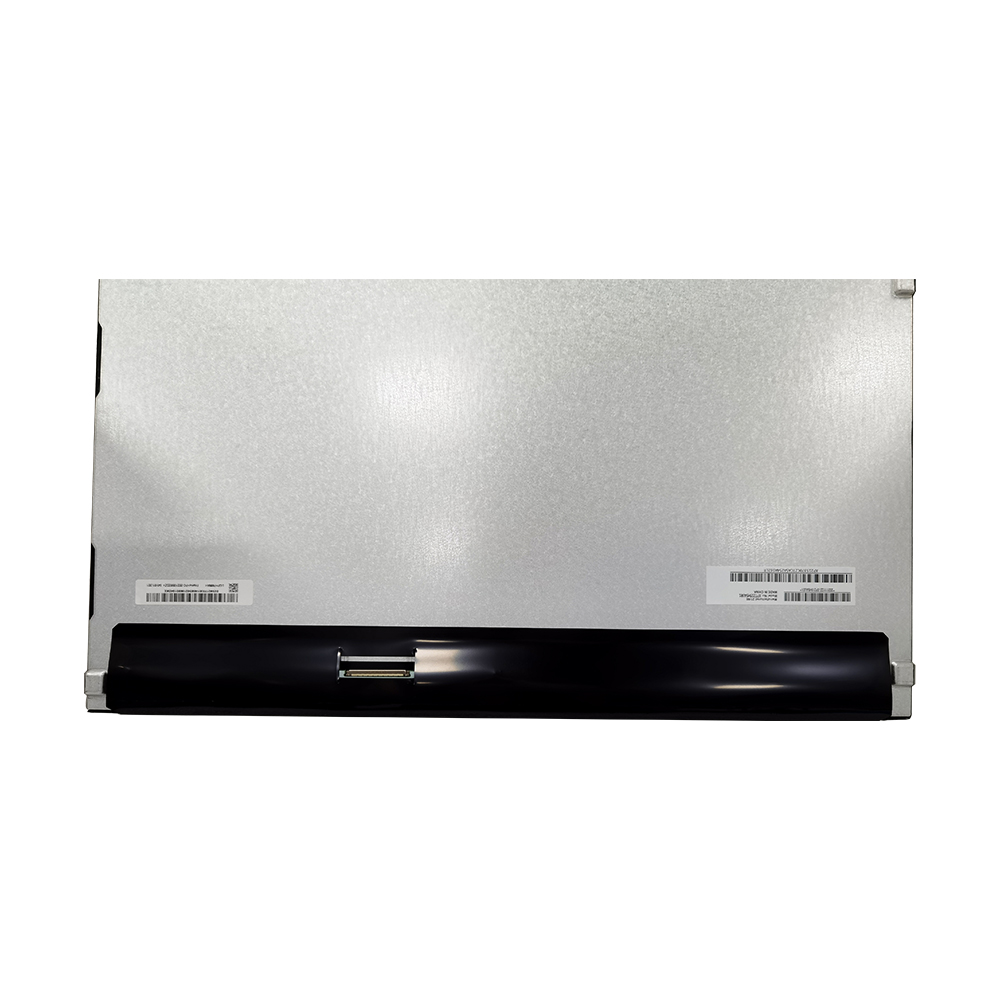

21.5 Inch 250 Nit 1920*1080 Lvds 30 Pins IPS Full HD LCD Display

General Description

This specification applies to the 21.5 inch wide Color a-Si TFT-LCD Module T215HVN01.1.

The display supports the Full HD - 1920(H) x 1080(V) screen format and 16.7M colors (8 bits RGB

data input ). The input interface is Dual channel LVDS and this module doesn’t contain an driver

board for backlight.

SPECIFICATIONS

ITEMS	Unit	SPECIFICATIONS
Screen Diagonal	[mm]	546.86 (21.53”)
Active Area	[mm]	476.64 (H) x 268.11 (V)
Pixels H x V		1920(x3)x 1080
Pixel Pitch	[um]	248.25(per one triad)x248.25
Pixel Arrangement		R.G.B.Vertical Stripe
Display Mode		VA Mode, Normally Black
White Luminance ( Center )	[cd/m2 ]	250 (Typ.)
Contrast Ratio		3000 Typ.)
Response Time	[msec]	18ms (Typ., on/off)
Power Consumption (LCD Module + Backligh unit)	[Watt]	15.2 Typ.)LCD module ∶PDD(Typ.)=3.1@ all white pattern, Fv-60Hz Backlight unit: PBLU(Typ.)=12.1@Is=65mA
Weight	[Grams]	1670
Outline Dimension	[mm]	495.6(H)x 292.2(V)x10.6(D)Typ.
Electrical Interface		Dual channel LVDS,8 bits RGB data input
Support Color		16.7M colors
Surface Treatment		Anti-Glare,3H
Temperature Range Operating Storage (Shipping)	[o C] [o C]	0 to +50 -20 to +60
RoHS Compliance		RoHS Compliance
TCO Compliance		TCO 6.0 Compliance

Permanent damage may occur if exceeding the following maximum rating

Description	Min.	Max.	Unit	Remark
perating Temperature	0	50	PC]	Note 2-1
Glass surface temperature(operation)	0	65	reo	Note 2-1Function judged only
peration Humidity	5	90	[%RH]	Note 2-1
Storage Temperature	-20	60	Pc]
Storage Humidity	5	90	T%RH]

Recommended Operating Condition

Symbol	Description	Min	Type	Max	Unit	Remark
VDD	Power supply Input voltage	4.5	5	5.5	[Volt]
IDD	Power supply Input Current (RMs)		0.62	0.74	[A]	VDD=5.0V,Black Pattern, Fv=6OHz
IDD	Power supply Input Current (RMs)		0.7	0.84	[A]	VDD=5.0V, Black Pattern, Fv=75Hz
PDD	VDD Power Consumption		3.1	3.7	[Watt]	VDD=5.0V, Black Pattern, Fv=60Hz
PDD	VDD Power Consumption		3.5	4.2	Watt]	VDD=5.0V, Black Pattern, Fv=75Hz
IRush	Inrush Current			3	[A]	Note 3-1
VDDrp	Allowable VDD Ripple Voltage			500	[mV]	VDD= 5.0V, Black Pattern, Fv=75Hz

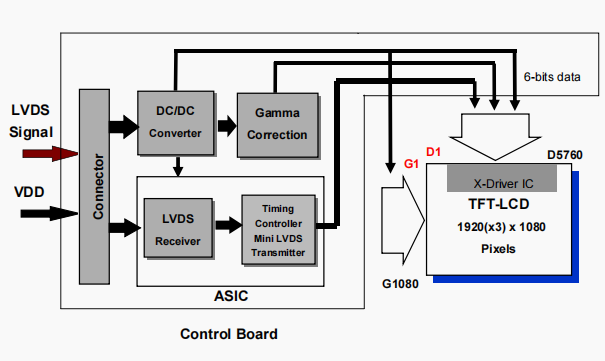

The following shows the block diagram of the 21.5 inch Color TFT-LCD Module.
