New office use 21.5 inch PCAP touch monitor Desktop computer touch
monitor with 1 year warranty
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one
computers. With advanced, cost-effective touch solutions, CJTouch
believes in engaging with customers while providing customized
services. (More information : www.cjtouch.com )
Our service strength:
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the interfaces, functions,
images, structures, etc. We have professional engineer team to
realize your idea.
You can find the right product you want, whatever the most
competitive price or Highest quality!
21.5 inch Flat Screen Desktop PCAP Touch Monitor features:
1. Size: 15.6/19.5/21.5/23.8 inch
2. True flat screen design, waterproof and vandal proof available
3. Support 10 points touch
4. VGA+H-DMI video input and USB interface
5. Mounting Interface : VESA 75mm and 75mm / Mount with base
21.5 inch Flat Screen Desktop Capacitive Touch Monitor
specification :
| General |
| Model | CDT215-CDK02 |
| Series | Water-proof and Open frame |
| LCD Type | 21.5” Active matrix TFT-LCD |
| Video Input | VGA, H-DMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio,
Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1) VESA 75mm and 75mm 2) Mount with base |
| LCD Specification (Please refer to this model--T215HVN01.1) |
| Active Area(mm) | 479.84 × 271.31 (H×V) mm |
| Resolution | 1920(RGB)×1080 (FHD) 102PPI |
| Dot Pitch(mm) | 0.08275×0.24825 mm (H×V) |
| Nominal Input Voltage | 5.0V (Typ.) |
| Viewing angle (v/h) | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast | 3000 : 1 (Typ.) |
| Luminance(cd/m2) | 250 cd/m² (Typ.) |
| Response Time(Rising) | 13/5 (Typ.)(Tr/Td) ms |
| Support color | 16.7M (8-bit) |
| Backlight MTBF(hr) | 50000 |
| Touchscreen Specification |
| Type | Projected Capacitive touch screen |
| Multi touch | 10 points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
Components:
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
USB Cable 180cm*1 Pcs

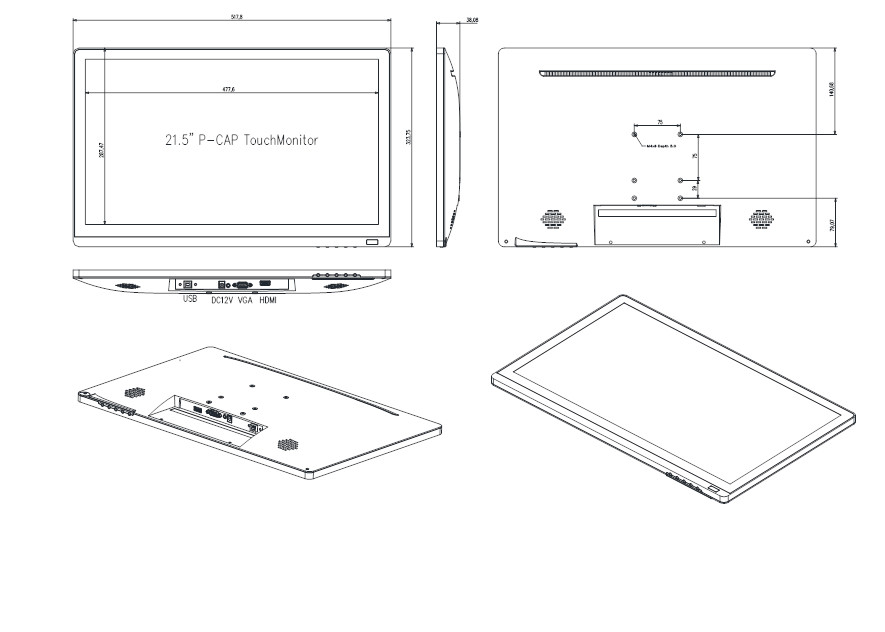

21.5 inch Flat Screen Desktop Capacitive Touch Monitor drawing:

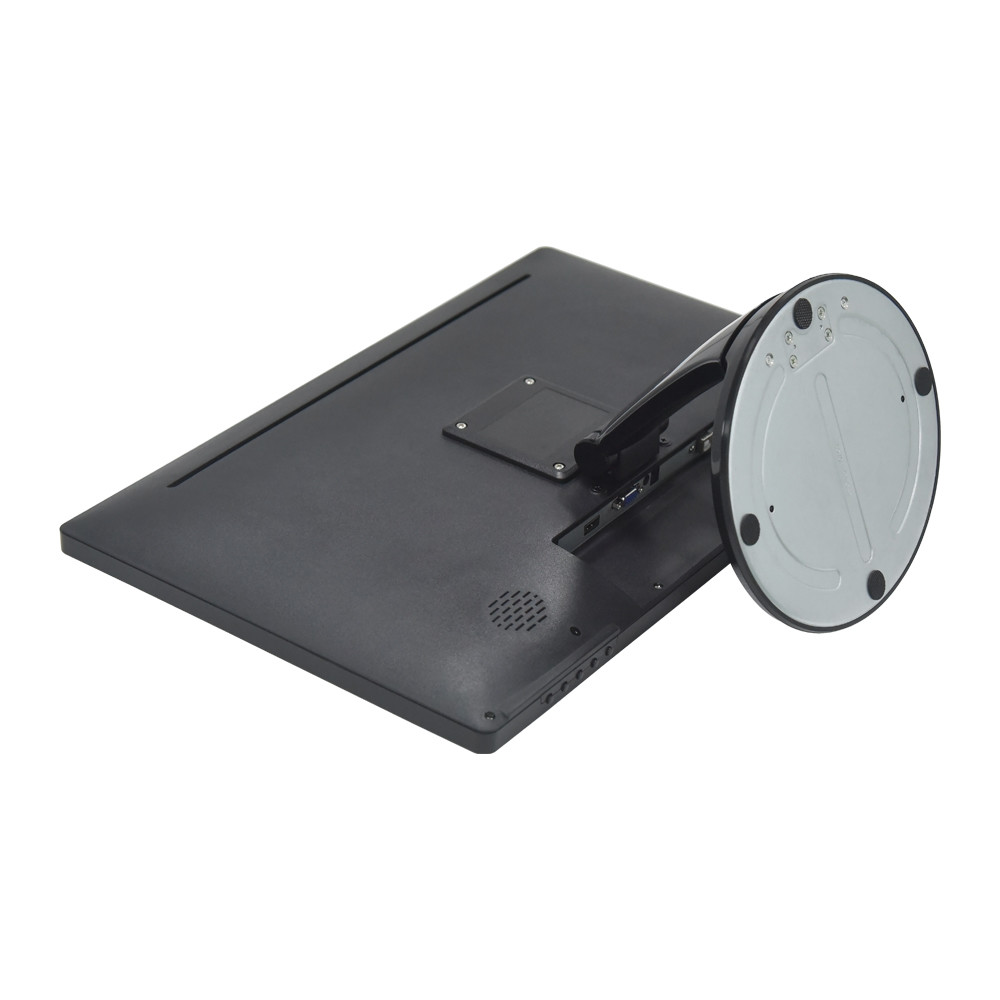

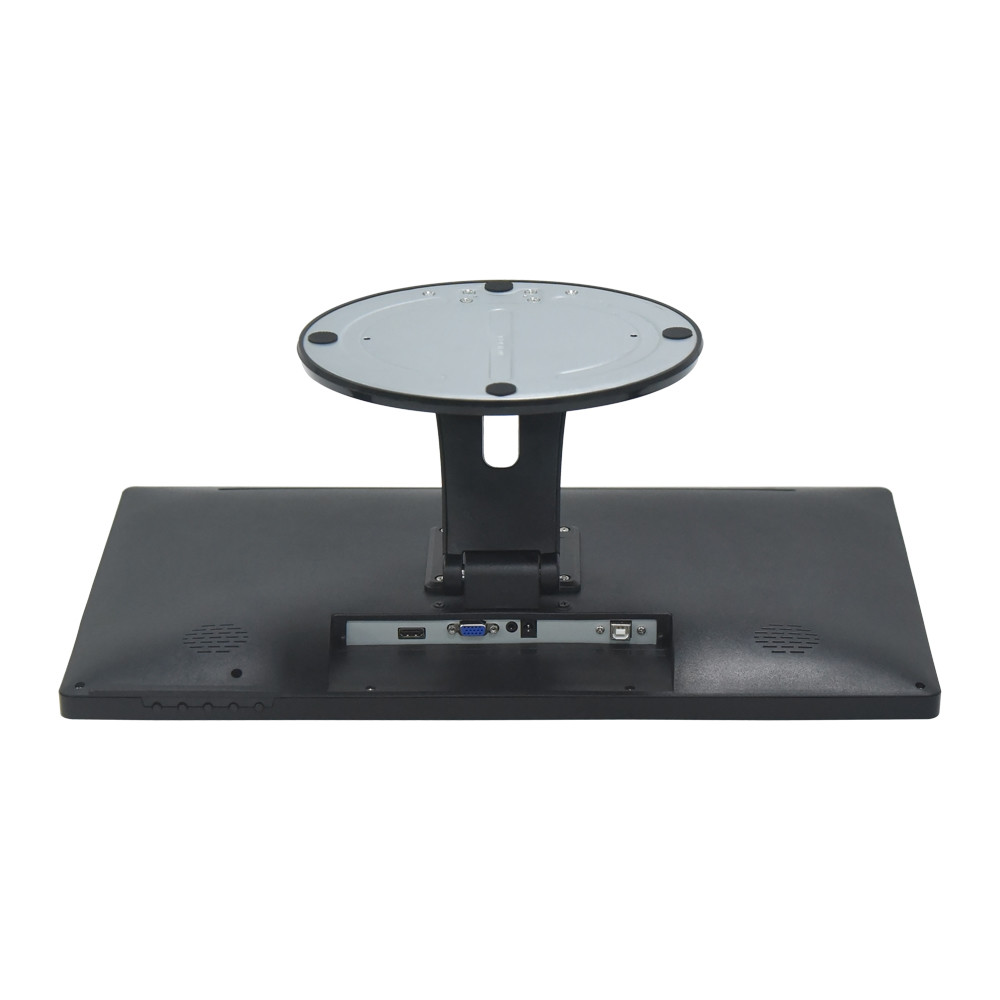

21.5 inch Flat Screen Desktop Capacitive Touch Monitor pictures:
