18.5 inch Open frame PCAP touch monitors Capacitive LCD monitors
Capacitive touch monitors are widely used in industrial automation,
gas station terminals, aircraft display screens, automobile GPS,
medical equipment, POS machines and ATM machines in banks. PCAP
touch monitors are vandal-proof and waterproof. With the resistance
to light interference, it is applicable to harsh environment.
18.5 inch Capacitive LCD monitors Features:
-Using a brand new LCD screen
-Aluminum alloy enclosure with efficient heat dissipation.
-Ture flat touchscreen desigh
-It can achieve 5/10 points multi touch
-HDMI/VGA/DVI, USB interface. Easy to use
-Tempered glass has waterproof/ vandalproof/ dustproof/ sunlight
readable function
-Accept customer customization
-Application: Self service kiosk. Advertising signage, Interactive
whiteboard, Vending machine ect.
18.5 inch Capacitive touch monitor specification :
| Display Specifications |
| Characteristic | Value | Comment |
| LCD Size/Type | 18.5” a-Si TFT-LCD | |
| Aspect Ratio | 16:9 | |
| Active Area | Horizontal | 409.8mm | |
| Vertical | 230.4mm | |
| Pixel | Horizontal | 0.300 | |
| Vertical | 0.300 | |
| Panel Resolution | 1366(RGB)×768 (FHD)(60Hz) | Native |
| Display Color | 16.7M , 72% NTSC | 6-bits + Hi-FRC |
| Contrast Ratio | 1000:1 | Typical |
| Brightness | 250 nits | Typical |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) ms | Typical |
| Viewing Angle | Horizontal | 85/85 | (Typ.)(CR≥10) |
| Vertical | 80/80 | |
| Video Signal Input | VGA and DVI and HDMI | |
| Physical Specifications |
| Dimensions | Width | 454 mm | |
| Height | 277mm | |
| Depth | 40mm | |
| Electrical Specifications |
| Power Supply | DC 12V 4A | Power Adapter Included |
| 100-240 VAC, 50-60 Hz | Plug Input |
| Power Consumption | Operating | 38 W | Typical |
| Sleep | 3 W | |
| Off | 1 W | |
| Touch Screen Specifications |
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point |
| Touch Interface | USB (Type B) |
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) |
| Driver | Driver Offered |
| Environmental Specifications |
| Condition | Specification |
| Temperature | Operating | -10°C ~+ 50°C |
| Storage | -20°C ~ +70°C |
| Humidity | Operating | 20% ~ 80% |
| Storage | 10% ~ 90% |
| MTBF | 30000 Hrs at 25°C |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
18.5 inch PCAP touch monitor drawing:

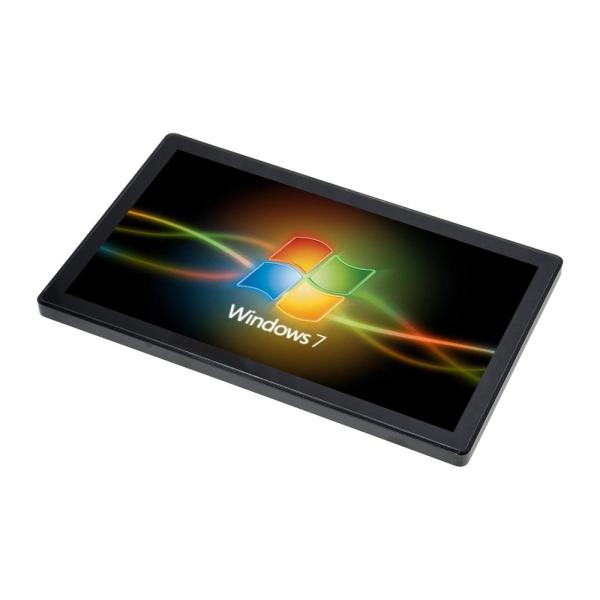

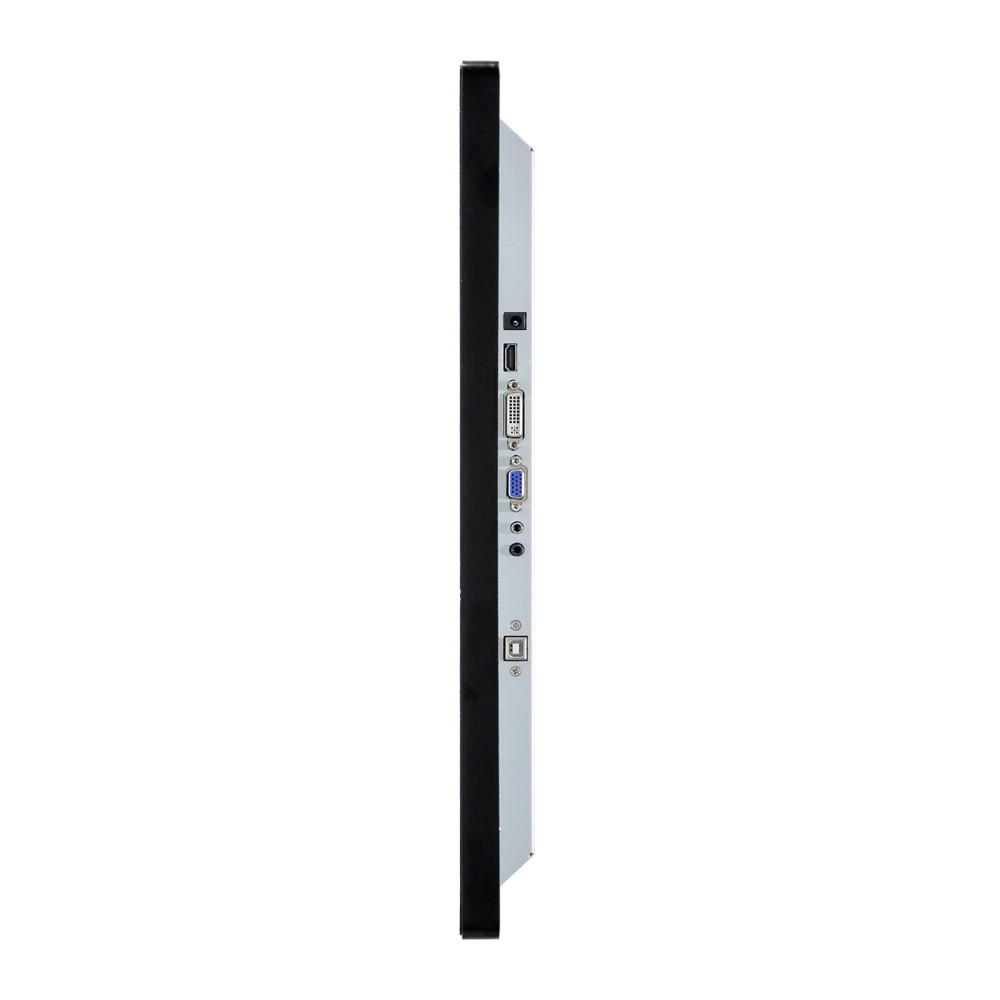

18.5 inch Capacitive display monitor pictures:
