23.8 inch high sensitivity PCAP touch monitor vandalproof capacity
lcd monitors power supply dc 12v
What We Offer:
Through our consistent and high quality performance, CJTouch has
got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other
international certifications.
Single or Multi-touch screens (custom sizes available)
Single or Multi-touch monitors (custom sizes and functions
available)
All-in-one computers
Our service strength
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the
interfaces,functions,images,structures,etc.We have professional
engineer team to realize your idea.
You can find the right product you want,whatever the most
competitive price or Highest quality!
23.8 inch PCAP touch monitor Features:
Industrial design with Excellent durability
P65 Touch Screen Surface Water-Proof Sealed
3mm tempered glass with high resistance
Easy to Use:Plug and Works on Wins/Li-nux/An-droid
VESA Mounting and Rear Mounting
12 Months Warranty
Custom accepted
Perfect Solutions For Use In Public
Factory Competitive Price and Fast Delivery
Applicable to harsh environment and widely used in industrial,
commercial, atm machine ect.
23.8 inch Capacitive touch monitor specification :
| Display Specifications |
| Characteristic | Value. | Comment |
| LCD Size/Type | 23.8” a-Si TFT-LCD | |
| Aspect Ratio | 16:9 | |
| Active Area | Horizontal | 527.04mm | |
| Vertical | 296.48mm | |
| Pixel | Horizontal | 0.2745 | |
| Vertical | 0.2745 | |
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native |
| Display Color | 16.7 Million | 6-bits + Hi-FRC |
| Contrast Ratio | 1000:1 | Typical |
| Brightness | 250 nits | Typical |
| Response Time | 14ms | Typical |
| Viewing Angle | Horizontal | 178 | Typical |
| Vertical | 178 | |
| Video Signal Input | VGA and DVI and H-DMI | |
| Physical Specifications |
| Dimensions | Width | 569.2 mm | |
| Height | 341.1 mm | |
| Depth | 43.4 mm | |
| Weight | Net Weight 8 kgs | Shipping Weight 12 kgs | |
| Box Dimensions | Length | 660 mm | |
| Width | 440 mm | |
| Height | 180 mm | |
| Electrical Specifications |
| Power Supply | DC 12V 4A | Power Adapter Included |
| 100-240 VAC, 50-60 Hz | Plug Input |
| Power Consumption | Operating | 38 W | Typical |
| Sleep | 3 W | |
| Off | 1 W | |
| Touch Screen Specifications |
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point |
| Touch Interface | USB (Type B) |
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) |
| Driver | Driver Offered |
| Environmental Specifications |
| Condition | Specification |
| Temperature | Operating | -10°C ~+ 50°C |
| Storage | -20°C ~ +70°C |
| Humidity | Operating | 20% ~ 80% |
| Storage | 10% ~ 90% |
| MTBF | 30000 Hrs at 25°C |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
23.8 inch PCAP touch monitor drawing:

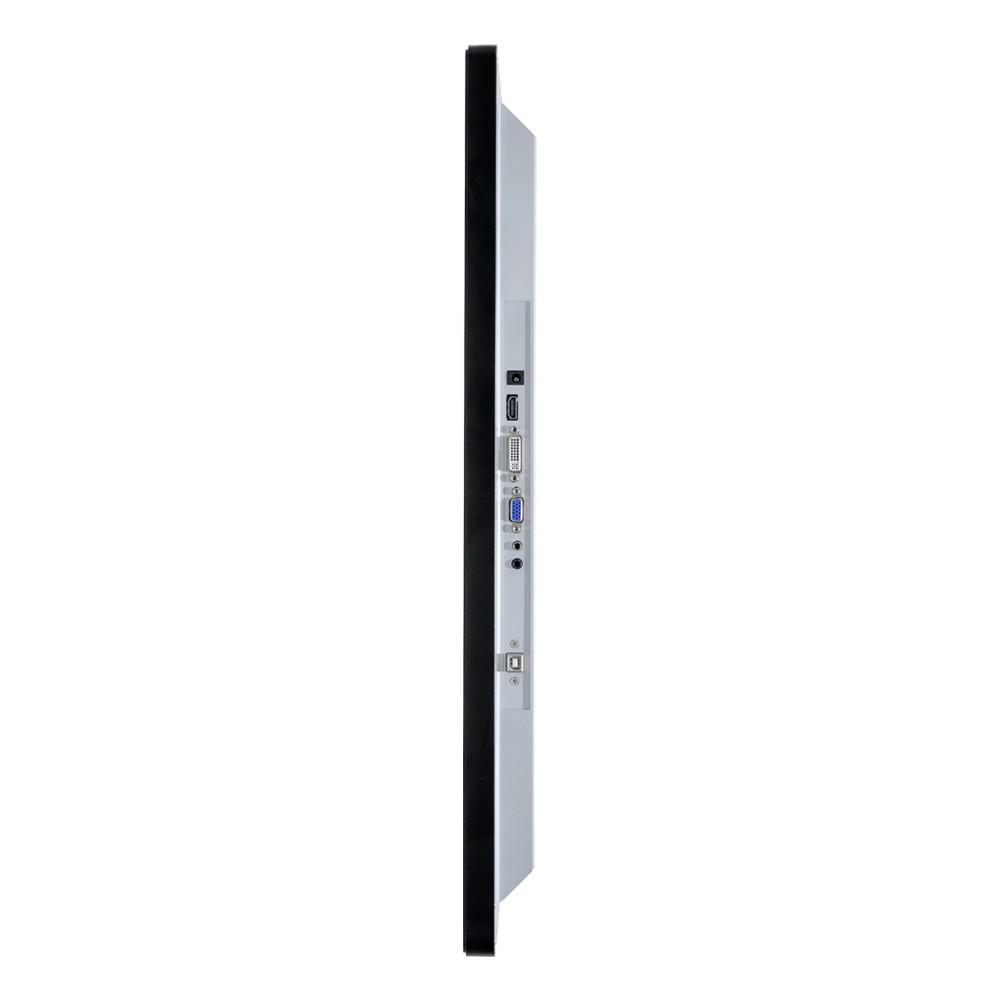

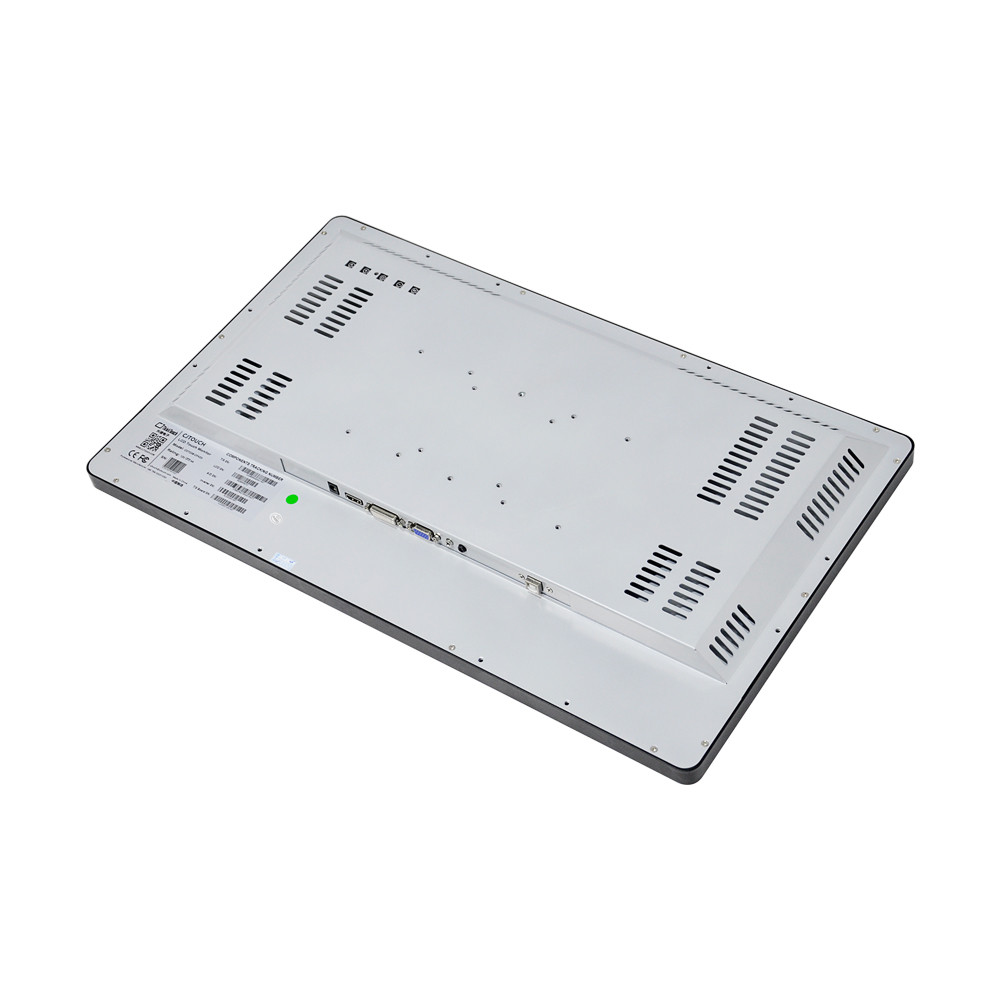

23.8 inch Capacitive display monitor pictures:
