True Flat Touch Screen 10 Points 19 inch PCAP touch monitor with
mount bracket
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of
Touchscreen, Touch monitor and All-in-one computers. With advanced,
cost-effective touch solutions, CJTouch believes in engaging with
customers while providing customized services. (More information :
www.cjtouch.com ).We offer an extensive array of services with
products being widely used in industries such as finance, gaming,
retail, kiosk, health care, education, etc.
What We Offer:
Through our consistent and high quality performance, CJTouch has
got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other
international certifications.
Single or Multi-touch screens (custom sizes available)
Single or Multi-touch monitors (custom sizes and functions
available)
All-in-one computers
19 inch PCAP touch monitor Features:
- Projected capacitive touch technology
- High quality LCD display panel with excellent viewing angle
- Achieve 5/10 points multi touch
- Multilingual on-screen display (OSD)
- VESA hole or mount bracket, horizontal or vertical
- Fully RoHS,FCC certification
- LCD backlight MTBF 30000
19 inch Capacitive touch monitor specification :
| General |
| Model | COT190-CFF03 |
| Series | Water-proof and Flat Screen |
| LCD Type | 19” Active matrix TFT-LCD |
| Video Input | VGA, DVI and H-DMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio,
Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification |
| Active Area(mm) | 376.320(H)×301.060(V) |
| Resolution | 1280×1024@60Hz |
| Dot Pitch(mm) | 0.294×0.294 |
| Nominal Input Voltage | +5.0V(Typ) |
| Viewing angle (v/h) | 80°/85° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising) | 3.6s/1.4s |
| Support color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
19 inch PCAP touch monitor drawing:

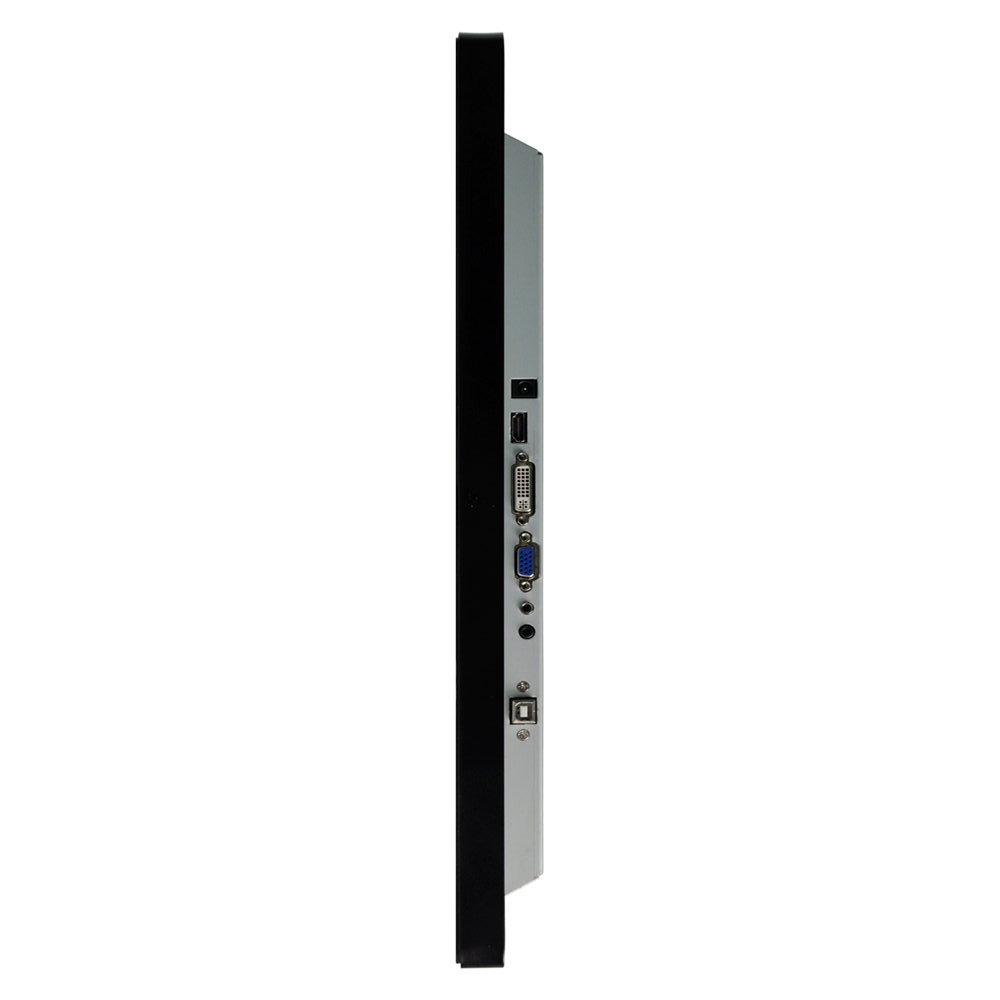

19 inch Capacitive display monitor pictures:
