Waterproof OEM Touchscreen All In One Desktop PC Computer Fit I3 I5 I7 Android

Ask Lasest Price
Brand Name :	CJTOUCH
Model Number :	CCT150-CFF-M219F-6C
Certification :	CE FCC
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, PayPal
Supply Ability :	3000 pcs per week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Waterproof OEM Touchscreen All In One Desktop PC Computer Fit I3 I5 I7 Android

10.1'' - 65'' Multi Touch Aio Touch PC All In One Computer I3 I5 I7 Android

15'' Aio All In One Touch PC Features:

Aio touch size from 10.1'' to 65''
vandal-proof 3mm touchscreen glass
L G, Sam sung, AU O, BO E, ect LCD LED Panels
PCAP capacitive technology support 5 or 10 points multi-touch function
IP65 touchscreen sur face waterproof
CPU optional J1900/I3/I5/I7/A-ndroid
2-32 GB ect RAM Optional
32- 512GB ect SSD Optional
VESA and rear mounting
Good factory price and fast delivery
Our Aio All In One Touch PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
Warranty: 12 months

Specifications:

General Information
Model	CCT150-CFF-M219F-6C
CPU	J1900 / I3/I5/I7/ And-roid optional
RAM	2/4/8/16/32GB RAM
Memory	32/64/128/256/512 GB SSD
Interface	H-DMI, VGA, USB, COM, RJ45
Power supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A
Mount Interface	1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical
OS	Wins7/8/10 or Android
LCD Specification
Active area(mm)	304.128 × 228.096 (H×V) mm
Resolution	1024×768@60Hz
Pixel Pitch(mm)	0.297×0.297
Nominal input voltage VDD	3.3v
Viewing angle(v/h)	89/89/89/89 (Typ.)(CR≥10)
Contrast	1500:1
Luminance (cd/m2)	250 cd/m² (Typ.)
Response time	20/15 (Typ.)(Tr/Td) ms
Support color	262K/16.2M
Backlight MTBF(hr)	30000
Touchscreen Specification
Type	Cjtouch Projected Capacitive PCAP touchscreen
Multi touch	10 points multi touch
Touch Life Cycle	10 millions
Touch Response time	8ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /5A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating temp.	0~50°C
Storage temp.	-20~60°C
Operating temp.	20%~80%
Stroage RH	10%~90%

Components of Aio All In One Touch PC:

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs

Package :

1 or 2 pcs AIO Touch PC in one carton, EPE package inside

Shipping :

For sample order: By Fedex, TNT, UPS, DHL etc.

For bulk order: By air to airport or by sea to seaport

Others:
1. We support Western Union, T/T, L/C and Paypal. Payment terms: 30% deposit by T/T when order confirmed, the balance shall be paid before the shipment by T/T.
2. Lead time: 3-5 working days according to the order quantity
3. The price: based on FOB Shenzhen or EXW Dongguan, we will offer best discount according to order quantity
4. Provide service OEM ODM service.

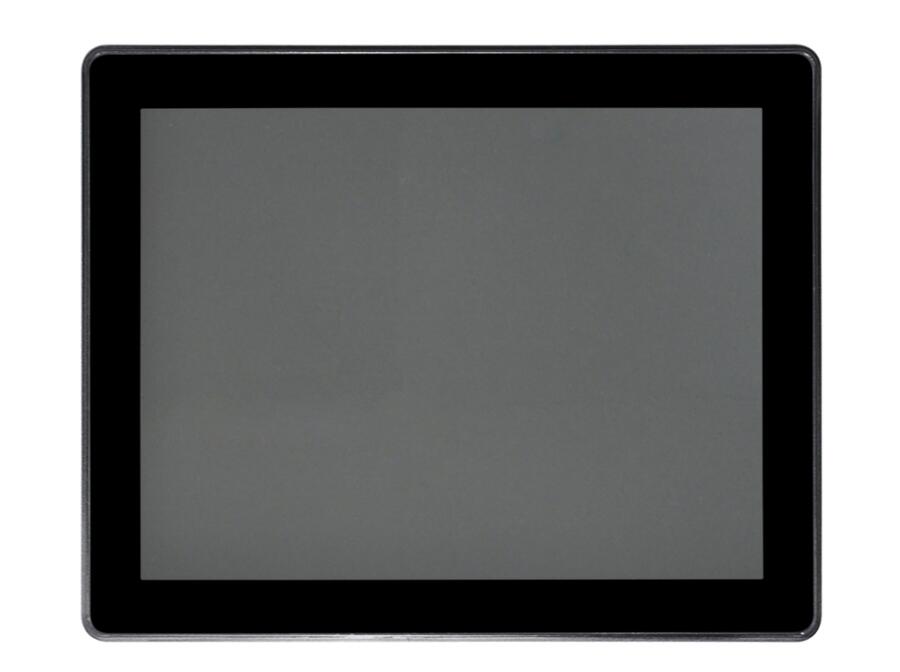

Pictures:

Drawing:
