    All In One Panel PC For ATM

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : CCT170-CFF-J1900
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    All In One Panel PC For ATM

    17'' Touch Screen All In One Panel Pc Multi Touch For Kiosk, ATM


    Features:

    • Optional size from 10.1'' to 65''
    • With PCAP vandal proof touchscreen, support 10 points touch
    • L G, Sam sung, AU O, BO E, ect LCD LED Panels
    • IP65 touch screen sur face waterproof sealled
    • CPU J1900/I3/I5/I7/A-ndroid according to your requirements
    • RAM from 2GB to 32GB Optional
    • 32/64/128/256/512 ect SSD Optional
    • VESA mounting and rear mounting
    • Factory best price and fast delivery
    • Our Touch screen all in one panel pc are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
    • Warranty: 12 months
    • 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch screen all in one panel pc

    Specifications:

    General Information
    ModelCCT170-CFF-J1900
    CPUJ1900 / I3/I5/I7/ Android optional
    RAMFrom 2GB - 32GB
    MemoryFrom 32GB -512GB SSD
    InterfaceUSB, COM, RJ45, HD-MI, VGA
    Power supplyType: External brick
    Input (line) voltage: 100-240 VAC, 50-60 Hz
    Output voltage/current: 12 volts 5A
    Mount Interface

    1)VESA 75mm and 100mm

    2) Mount bracket, horizontal or vertical

    OSWins 7/8/10 or Android
    LCD Specification
    Active area(mm)

    337.92 × 270.336 (H×V) mm

    Resolution

    1280×1024@60Hz

    Pixel Pitch(mm)

    0.264×0.264 (H×V)

    Nominal input voltage VDD

    +5V

    Viewing angle(v/h)

    85/85/80/80 (Typ.)(CR≥10)

    Contrast

    1000:1

    Luminance (cd/m2)250 cd/m² (Typ.)
    Response time

    3.8/1.2 (Typ.)(Tr/Td) ms

    Support color

    16.7M , 90% NTSC

    Backlight MTBF(hr)30000

    Touchscreen Specification

    Type

    PCAP touchscreen

    Multi touch

    10 points multi-touch

    Touch Life Cycle

    10 millions

    Touch Response time

    8ms

    Touch System Interface

    USB interface

    Power consumption

    +5V@80mA

    External AC Power Adapter

    Output

    DC 12V /5A

    Input

    100-240 VAC, 50-60 Hz

    MTBF

    50000 hr at 25°C

    Environment

    Operating temp.0~50°C
    Storage temp.-20~60°C
    Operating temp.20%~80%
    Stroage RH10%~90%

    Components:

    Power Cord with Switching Adapter *1 Pcs,

    Bracket*2 Pcs


    Package :

    1 or 2 pcs Touch screen all in one panel pc in one carton, EPE package inside

    Shipping :

    For sample order: By Fedex, TNT, UPS, DHL door to door service etc.

    For bulk order: By air to airport or by sea to seaport

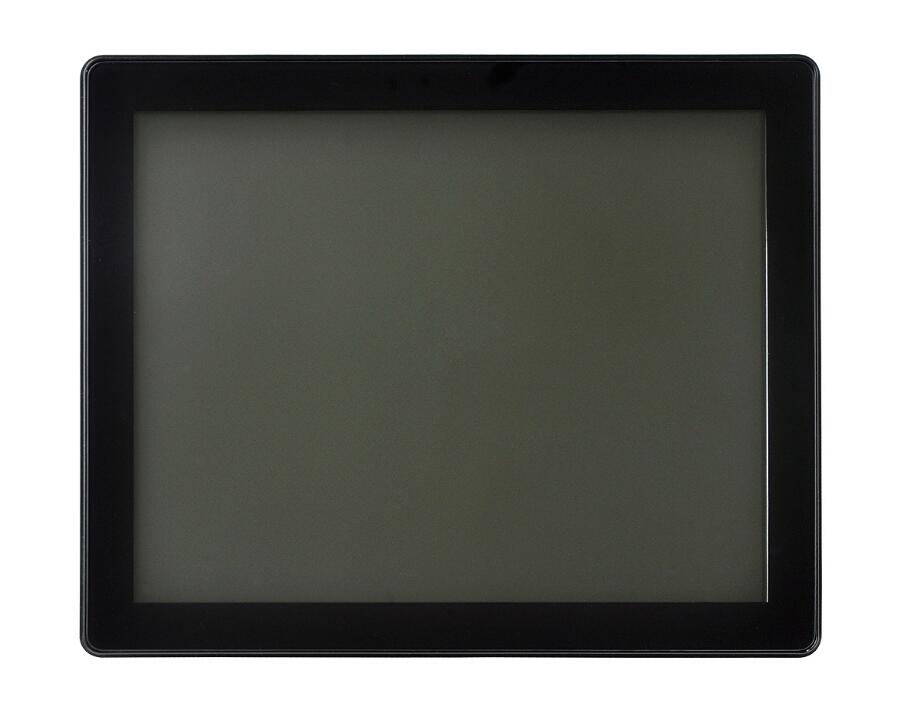

    Pictures:

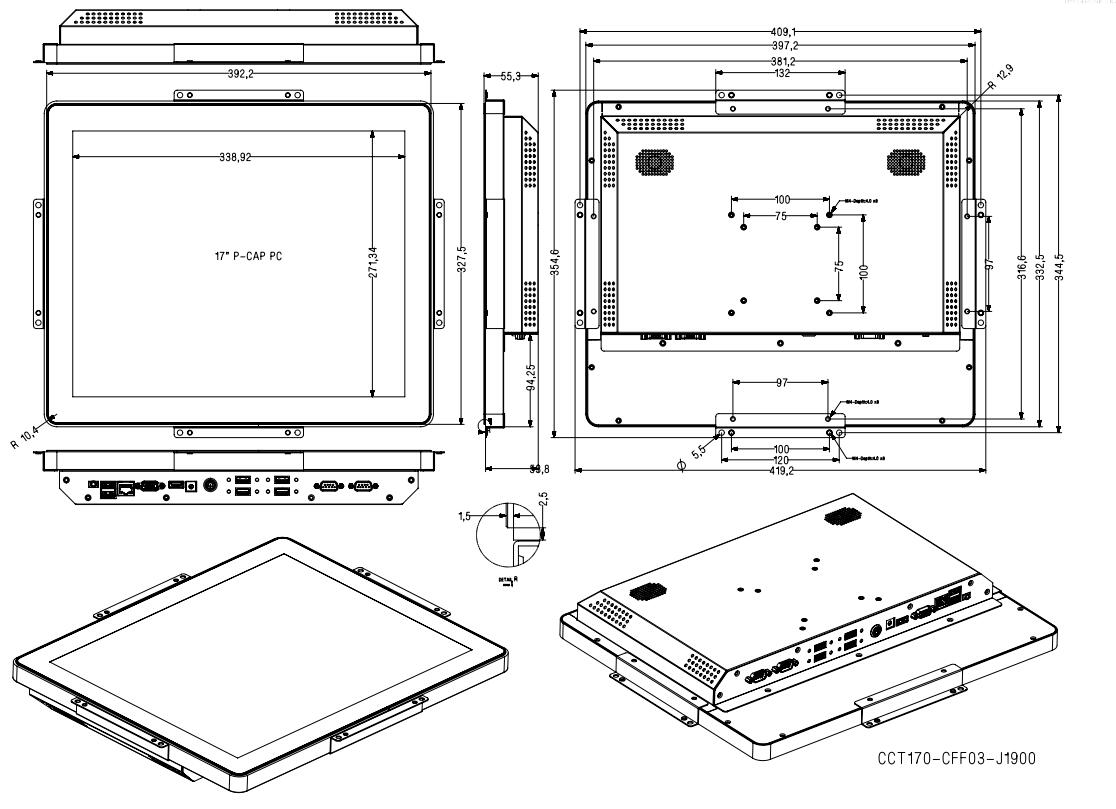

    Drawing:

      Quality All In One Panel PC For ATM for sale
