PCAP Computer Monitor Touch Screen Industrial 10.1 Inch 1280x800

Ask Lasest Price
Brand Name :	CJTOUCH
Model Number :	ALAD-A1001T
Certification :	CE FCC
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, PayPal
Supply Ability :	3000 pcs per week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

PCAP Computer Monitor Touch Screen Industrial 10.1 Inch 1280x800

Industrial Display Montiors Computer 10.1 Inch Industrial Panel Computer

ALAD-A1001T is a compact, fanless embedded panel computer, powered by J1900 processor.Supports 10.1 inch 1280*800. It offers multiple I/O interface, 1*2.5"easy-pluggable SATA bay and I*full size MSATA for storage, I*Mlini Pcle socket (Pclexi USB signal) for expansion. It will be fit for application of automation and Warehouse management.

Features:

Aluminum die-casting chassis, Fanless design
10.1 " TFT LCD. Capacitive/Resistive touch
Cele ron J1900 CPU
1*DDR3L 1333M1HZ SODIMN. Max 8GB
2*Mlini PCIE(Pcle+ USB and MSATA)
2*COM 2*LAN, 1*USB3.0, 3*USB2.0
1*2.5'HDD Bay, 1*MSATA
I*H-DMI, 2*2W Speaker
DC 9-24V Power input

Specifications:

System
CPU	J1900 2.0- 2.42GHz, 4C4T, TDP 10W
Chipset	In tel SOC
System Memory	1*DDR3L 1333MHz SODIMM, Max 8GB
BIOS	Insyde SPI 64Mbit Flash
Storage	12.5" SATA HDD Bay, support SATA3.0 6Gbps HDD/SSD 1mSATA
Display	10.1'' LED TFT LCD and HD-MI, dual display, In tel HD Graphics,support In tel Quick Sync Video
Touch	5 wire resistive touch optional projected capacitive touch USB control
Expansion	1Mini PCIe full size with PCIe and USB signal; 1mSATA full size
Real I/O	2COM:1RS232 /422/485 DB9 connector, 1USB3.0 Type A, 3USB2.0 Type A, 1HD-MI, 2RJ45
LAN	In tel I211AT Chip, 10/100/1000 Mbps
Audio	Real tek ALC282 Audio codec integrated, 2*2W speaker inside
Control SW	1*Power button
Power Supply	DC: 9-24V input, 4-pin M12 connector , consumption: TBD
OS Supply	Wins 7, Wins 8.1, Linux
Mechanical & Environmental
Construction	Aluminum die-casting front bezel and chassis, fin-shaped radiator shell
Operating Temperature	0~50℃ -HDD(-10~55℃ -SSD ), with airflow
Storage Temperature	-20~60 ℃
Operating Humidity	10~95%@40, non-condensing
Shock	10g peak acceleration(duration 11ms), in operating with HDD
Vibration	1g 5~500Hz in operating with HDD
Mounting	Panel mounting, VESA 100*100
Dimension	(WHD):27519351mm; mounting cut out(WH): 271189mm
Net Weight	1.9KG
EMC	CE, FCC Class A
LCD
Type	10.1''TFT LED Backlight
Resolution	1280*800
Color	16.7M colors
Pixel Pitch(mm)	0.1695*0.1695
Brightness(cd/m2)	350
Viewing Angle	85 Degree(left), 85 Degree(right), 85 Degree(up), 85 Degree(down)
Operating Temperature	-20~70℃
Backlight Lifetime	15000 Hours
Touch
Type	5 wire resistive touch / Projected capacitive touch
Resolution	gapless
Light Transmittance	83% / 90%
Interface	USB
Consumption	+5V @ 200mA / +5V @ 300mA
OS	Wins or Linux
Click Lifetime	15 million times / 3 billion times

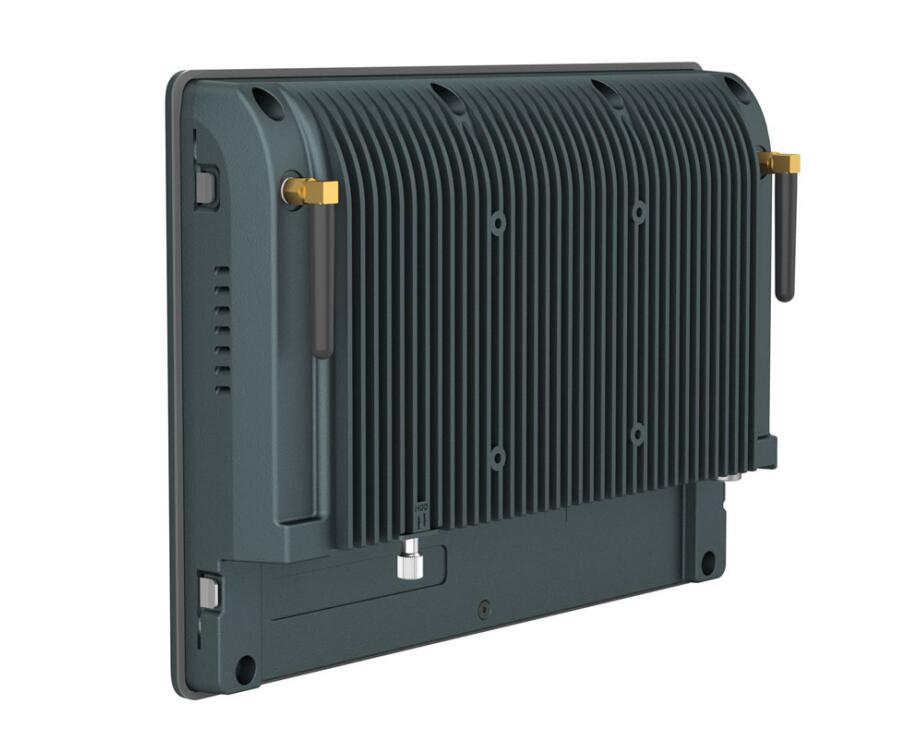

Pictures:
