Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch

    Buy cheap Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch from wholesalers

    Buy cheap Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch from wholesalers
    • Buy cheap Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch from wholesalers
    • Buy cheap Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch from wholesalers

    Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch

    Ask Lasest Price
    Brand Name : CJ TOUCH
    Model Number : CO150E-AWF02
    Certification : FCC /CE
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T,
    Supply Ability : 10000(pcs )per quarter
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch

    Industrial metal open frame SAW touchscreen monitor LCD Panel 4k resolution 15''SAW Touchscreen monitor

    • Industrial Desgin With Excellent Durablity
    • SAW Technology Multi Touch 1-2 Touch Points
    • Touch Screen Surface Water-Proof Sealled
    • 3MM Enhanced Glass With Vandal Proof Resistance
    • High Light Transmission Clear Glass
    • Easy to Use:Plug and Works on Wins/Lin-ux/Androi-d
    • Perfect Solutions For Use In Public
    • VESA Mounting and Rear Mounting
    • 12 Months Warranty
    • Customized Option: Brightness/Computer Integrated Inside, etc
    • Factory Competitive Price & Fast Delivery
    • Support embedded,wall-mounted,rack-mounted,desktop,VESA support..
    • Cjtouch’s SAW technology on pure glass for the ultimate in image quality
    • Finger or gloved hand operation
    • Dual USB/Serial touch interface port

    Transportation choice:

    Transport and Packing process Express(UPS,DHL,Fedex,EMS,etc) is available.

    Sea and Air delivery is available. Delivery Time Samples: 1-3working days 500PCS or More orders:5-15working days

    Professional 360° safe
    pack Vacuum bage→5layer corrugated carton→thick pearl cotton protection

    Specification :

    ModelCOT150E-AWF02
    SeriesWater-proof and Compact
    Monitor DimensionsWidth: 346mm Height: 270mm Depth: 49mm
    Weight(N.W/G.W)5Kg / 7.8Kg (Approx.)
    LCD Type15"SXGA Color TFT-LCD (Panel Model :G150EG01 V0)
    Video Input

    Accepts RGB input directly, DVI,HDMI and Audio function can be

    supported optionally

    Recommend Resolution1024×768@75Hz
    OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External brick
    Input (line) voltage: 100-240 VAC, 50-60 Hz
    Output voltage/current: 12 volts at 4 amps max
    Mount Interface

    1)VESA 75mm and 100mm

    2)Mount bracket, horizontal or vertical

    Regular Warranty1years for SAW Sensor; 1years for controller; 1 year for LCD
    Agency ApprovalFCC,CE

    2.LCD specs

    Active Area(mm)304.128(H)×288.096(V) mm
    Resolution1024(RGB)×768 XGA 85PPI
    Dot Pitch(mm)0.099×0.297 mm (H×V)
    Nominal Input Voltage VDD+3.3V(Typ)
    Viewing angle (v/h)89/89/89/89 (Typ.)(CR≥10)
    Contrast1000:1
    Luminance(cd/m2)350
    Response Time(Rising/Falling)8/17 (Typ.)(Tr/Td) ms
    Support Color16.7M colors
    Backlight MTBF(hr)50000
    NOTE:The LCD Specification will change follow the relevant LCD panel brand and model

    3.Touch screens

    TypeCjtouch Surface Acoustic Wave(SAW)
    Resolution4096*4096
    Light Transmission92%
    Touch Life Cycle50 millions
    Touch Response time16ms
    Touch System InterfaceRS-232 and USB interface
    Power consumption+5v

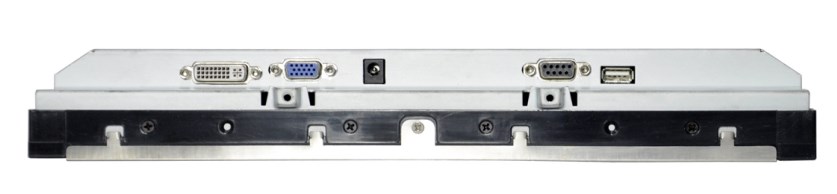

    Touch monitor Pictures

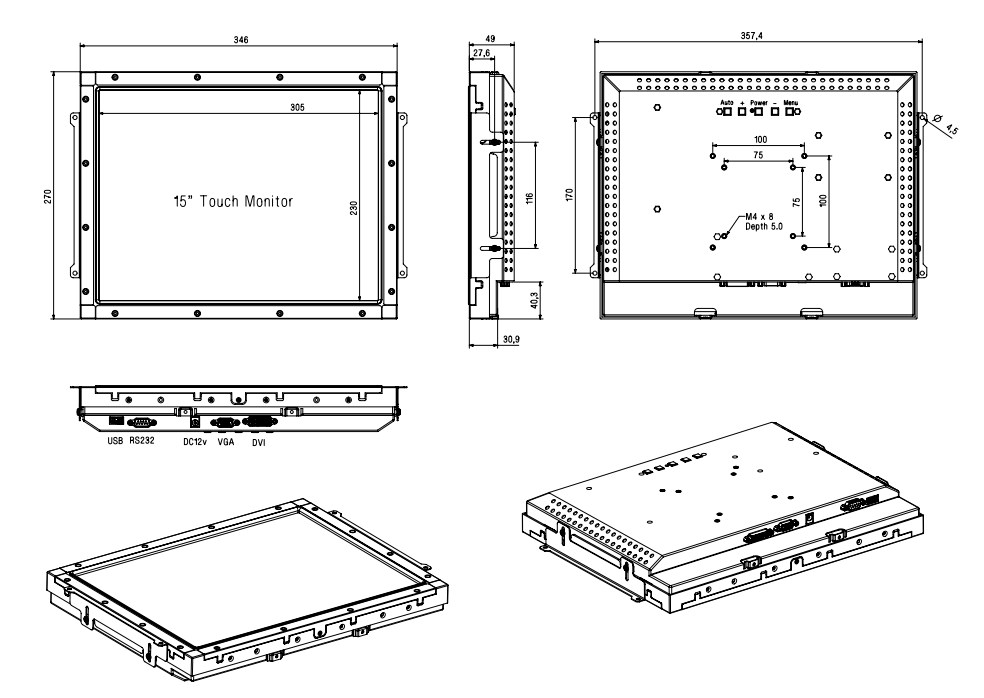

    Products Drawing :

    Quality Metal Open Frame SAW Touch Monitor LCD 4k Resolution 15 Inch for sale
