OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch

    Buy cheap OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch from wholesalers

    Buy cheap OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch from wholesalers
    • Buy cheap OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch from wholesalers
    • Buy cheap OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch from wholesalers

    OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : COT170E-AWF02
    Certification : FCC /CE
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T,
    Supply Ability : 10000(pcs )per quarter
    Delivery Time : 2-3 days
    • Product Details
    • Company Profile

    OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch

    Factory 17 inch Openframe SAW Touchscreen monitor lCD/LED panel display monitor

    • This monitor will come with 4mm/6mm Industrial touch screen,
    • Waterproof, dust-proof, Anti-glare, Anti-vandal are optional.
    • Multiple mounting options including rear Mount and VESA mounting
    • Can do USB and RS232 touch interface, DVI, HD-MI, VGA video input optional

    What We Offer:
    Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned FCC, RoHS and other
    international certifications.
    * Single Multi-touch screens (custom sizes available)
    * Single Multi-touch monitors (custom sizes and functions available)
    * All-in-one computers
    * ODM/OEM services

    Technology:
    CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most
    cutting-edge solutions in the industry.
    * Sur-face Acoustic Wave (SAW) touch technology
    * Infrared touch technology
    * Projected Infrared Touch technology

    FAQ

    1, Are you a factory?
    We are a factory producing touch screen products, so we can offer you the lowest price and the best qualities. And you are welcome
    to visit our factory.
    2, What certificates do you hold?
    CE, FCC, CCC, RoHS etc., to meet standards of different countries.
    3, How long is the delivery time?
    Usually 3~7 days after the payment is confirmed.
    4, How would you pack the goods if we order goods?
    Pack with carton box and foam materials.
    5, What is your after-sales service?
    Call our after-sales center and we offer on-line Technical Support and spare parts.
    6, What is your MOQ?
    1 Piece.
    7, Do you support OEM/ODM?
    Yes we do.
    8, Can I customized the style of the products we need?
    Yes, you can. Please contact us and and discuss with us.

    Specification :

    ModelCOT170E-AWF02
    SeriesDustproof
    Monitor DimensionsWidth: 368mm Height: 306mm Depth: 49.5mm
    Weight(N.W/G.W)6Kg / 9Kg (Approx.)
    LCD Type17"SXGA Color TFT-LCD (Panel Model :G170EG01 V0)
    Video Input

    Accepts RGB input directly, DVI,HDMI and Audio function can be

    supported optionally

    Recommend Resolution1280(RGB)×1024
    OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power SupplyType: External brick
    Input (line) voltage: 100-240 VAC, 50-60 Hz
    Output voltage/current: 12 volts at 4 amps max
    Mount Interface

    1)VESA 75mm and 100mm

    2)Mount bracket, horizontal or vertical

    Regular Warranty1 years for SAW Sensor; 3 years for controller; 1 year for LCD
    Agency ApprovalFCC,CE

    2.LCD Specs

    Active Area(mm)337.92 × 270.336 mm
    Resolution1280(RGB)×1024
    Dot Pitch(mm)0.088×0.264 mm
    Nominal Input Voltage VDD5.0V (Typ.)
    Viewing angle (v/h)85/85/80/80 (Typ.)
    Contrast250 (Typ.)

    Pixel Pitch(W×H)

    0.264×0.264 mm
    Support Color16.7M colors
    Response Time3.8/1.2 (Typ.)
    NOTE:The LCD Specification will change follow the relevant LCD panel brand and model

    3.Touch Screen

    TypeCjtouch Surface Acoustic Wave(SAW)
    Resolution4096*4096
    Light Transmission92%
    Touch Life Cycle50 millions
    Touch Response time16ms
    Touch System InterfaceRS-232 and USB interface
    Power consumption+5V@80mA

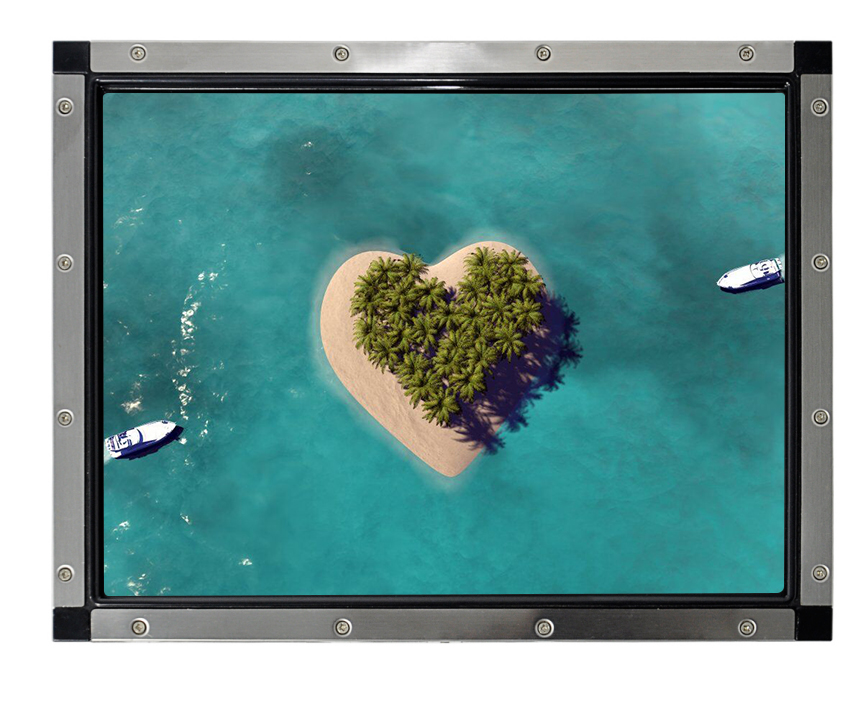

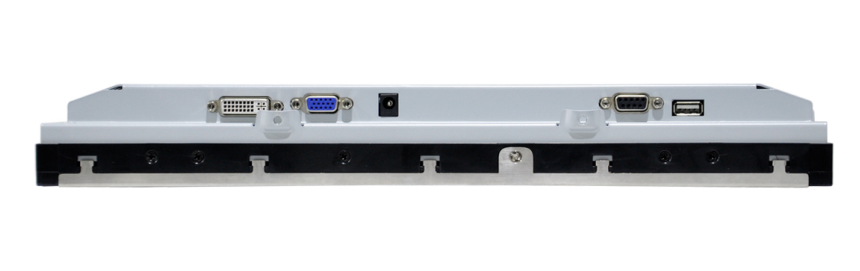

    Touch monitor Pictures


    Products Drawing :


    Quality OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch for sale
