Multi Point PCAP Touch Display

Ask Lasest Price
Brand Name :	CJTOUCH
Model Number :	CPI185T00-3K-C00
Certification :	CE/FCC
Price :	Negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	500pcs/week
Delivery Time :	2-5 working day

Add to Cart

Product Details
Company Profile

Multi Point PCAP Touch Display

18.5 Inch Multi-Pont Capacitive Touchsreen PCAP Touch screen for Touch Monitor PC

A capacitive touch screen is a control display that uses the conductive touch of a human finger or a specialized device for input. The panel is coated with a material that can store electrical charges and the location of touch to the screen is signaled by the change in capacitance in that location.

Which is better resistive or capacitive touch screen ?

If you want increased screen contrast and clarity, capacitive touch screens are the preferred option over resistive screens, which have more reflections due to their number of layers. Capacitive screens are also far more sensitive and can work with multi-point inputs, known as 'multi-touch'.

How dose a capacitive touch screen work ?

Capacitive screens do not use the pressure of your finger to create a change in the flow of electricity.In both instances, when a finger hits the screen a tiny electrical charge is transferred to the finger to complete the circuit, creating a voltage drop on that point of the screen.

Typical Application

Outdoor and indoor Kiosks
Bank monitor
Self-service ordering machine
Customizsed Solutions

Main Feature

High image clarity
Free of drift
Z-axis pressure recognition
Strong mechanical strength
Short response time
Compact size for easy integration
Customization available on glass sensorsize, driver, accessories

Specification of Product

*Technical specification*
Type	Projected touch panel
Interface	USB
Number of touch point	10
input voltage	5V ----
Pressure endurance value	<10g
Input	Hand writing or capacitive pen
Transmittance	>90%
Surface Hardness	≥6H
Usage	The specification is applied to transparent and handwriting input
Usage	capacitive touch panels
Application	It's applied in ordinary electric equipments and automatic office facilities
*Cover Lens Specification*
Pressure Value	400 ~500 mPA above 6u
Ball Drop Test	130g±2g, 35cm, No damage after the impact at the central area for once.
Hardness	≥6H Pencil: 6H Pressure: 1N/45.
*Environment*
Working temperature and humidity	-10~+60ºC, 20~85% RH
Storage temperature and humidity	-10~+65ºC, 20~85% RH
Humidity resistance	85% RH, 120H
Heat resistance	65ºC, 120H
Cold resistance	-10ºC, 120H
Thermal shock	-10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
Anti - glare Test	Incandescent lamp (220V,100W) ,
Anti - glare Test	operating distance over 350mm
Altitude	3,000m
Working Environment	Directly Under sunlight ,indoor and outdoor
*Software(Firmware)*
Scanning	Auto full screen scanning
Operate system	Win 7,Win 8,Win10, Andriod,Linux
Calibration tool	Precalibrated & Software can be download in CJTouch Website

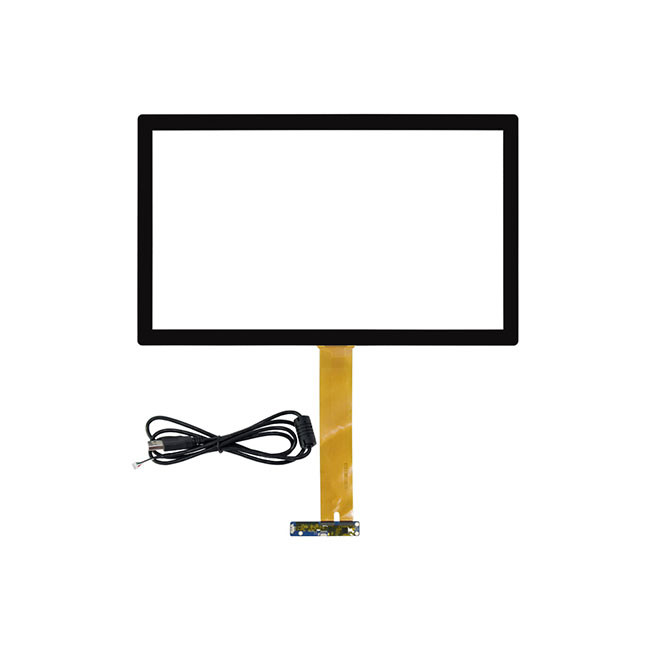

Picture of Product

Multi Point PCAP Touch Display

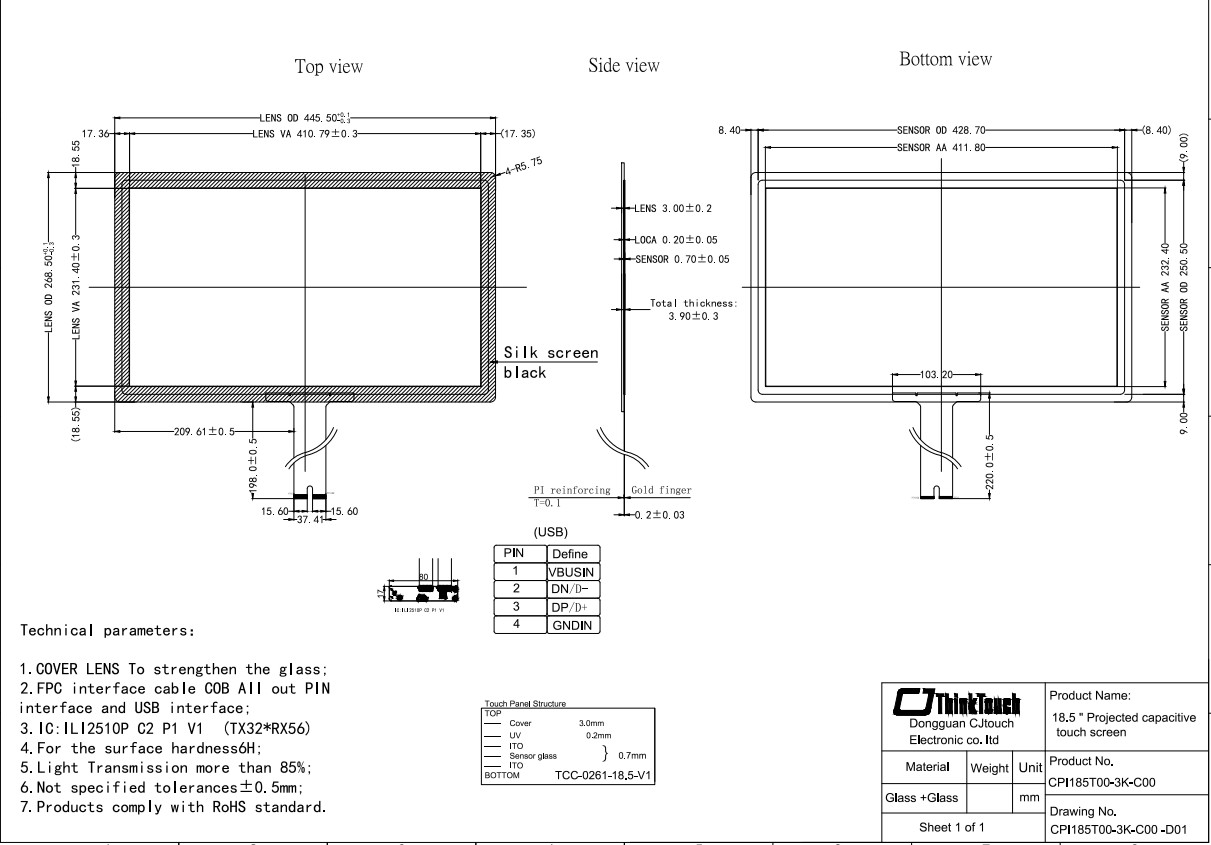

Technical Drawing

Multi Point PCAP Touch Display
