    10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : CPI150T00-3F-C00
    Certification : CE/FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 500pcs/week
    Delivery Time : 2-5 working day
    • Product Details
    • Company Profile

    10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

    USB interface PCAP touch screen 15" PCT Capacitive touchscreens for smart monitor

    How PCAP Touch screen Work?

    A Projected Capacitive Touch (PCT; also PCAP) technology consists of an insulator such as glass, which is coated with a transparent conductor, like ITO (indium tin oxide). The user’s finger conducts electricity, so touching the surface of the screen results in a distortion of the screen’s electrostatic field; that distortion is measurable as a change in capacitance.

    In other words, a capacitance-based sensor is a circuit designed to sense touch by coupling with the electrical fields; touch causes the capacitance of the circuit to change.

    Different technologies may be used to determine the location of the touch; the location is then sent to the controller for processing.


    Limitations of capacitive touch screen technology:

    • Can not be used with a gloved hand
    • Can not be used with stylus
    • Requires periodic recalibration
    • Ofter retofitted to standrad non-touch LCD monitors which may not be as stable when touched
    • Not usually fitted to monitors when applications require dust , water , scratch or impact resistance

    Capacitive touch screen technology is often recommended to customers who would like the confidence of a brand name LCD such as NEC, which the capacitive touch screen would then be retrofitted to.


    Main Feature

    • High image clarity
    • Free of drift
    • Z-axis pressure recognition
    • Strong mechanical strength
    • Short response time
    • Compact size for easy integration
    • Customization available on glass sensorsize, driver, accessories

    Specification of Product

    Technical specification
    TypeProjected touch panel
    InterfaceUSB
    Number of touch point10
    input voltage5V ----
    Pressure endurance value<10g
    InputHand writing or capacitive pen
    Transmittance>90%
    Surface Hardness≥6H
    UsageThe specification is applied to transparent and handwriting input
    capacitive touch panels
    ApplicationIt's applied in ordinary electric equipments and automatic office facilities
    Cover Lens Specification
    Pressure Value400 ~500 mPA above 6u
    Ball Drop Test130g±2g, 35cm, No damage after the impact at the central area for once.
    Hardness≥6H Pencil: 6H Pressure: 1N/45.
    Environment
    Working temperature and humidity-10~+60ºC, 20~85% RH
    Storage temperature and humidity-10~+65ºC, 20~85% RH
    Humidity resistance85% RH, 120H
    Heat resistance65ºC, 120H
    Cold resistance-10ºC, 120H
    Thermal shock-10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
    Anti - glare TestIncandescent lamp (220V,100W) ,
    operating distance over 350mm
    Altitude3,000m
    Working EnvironmentDirectly Under sunlight ,indoor and outdoor
    Software(Firmware)
    ScanningAuto full screen scanning
    Operate systemWin 7,Win 8,Win10, Andriod,Linux
    Calibration toolPrecalibrated & Software can be download in CJTouch Website

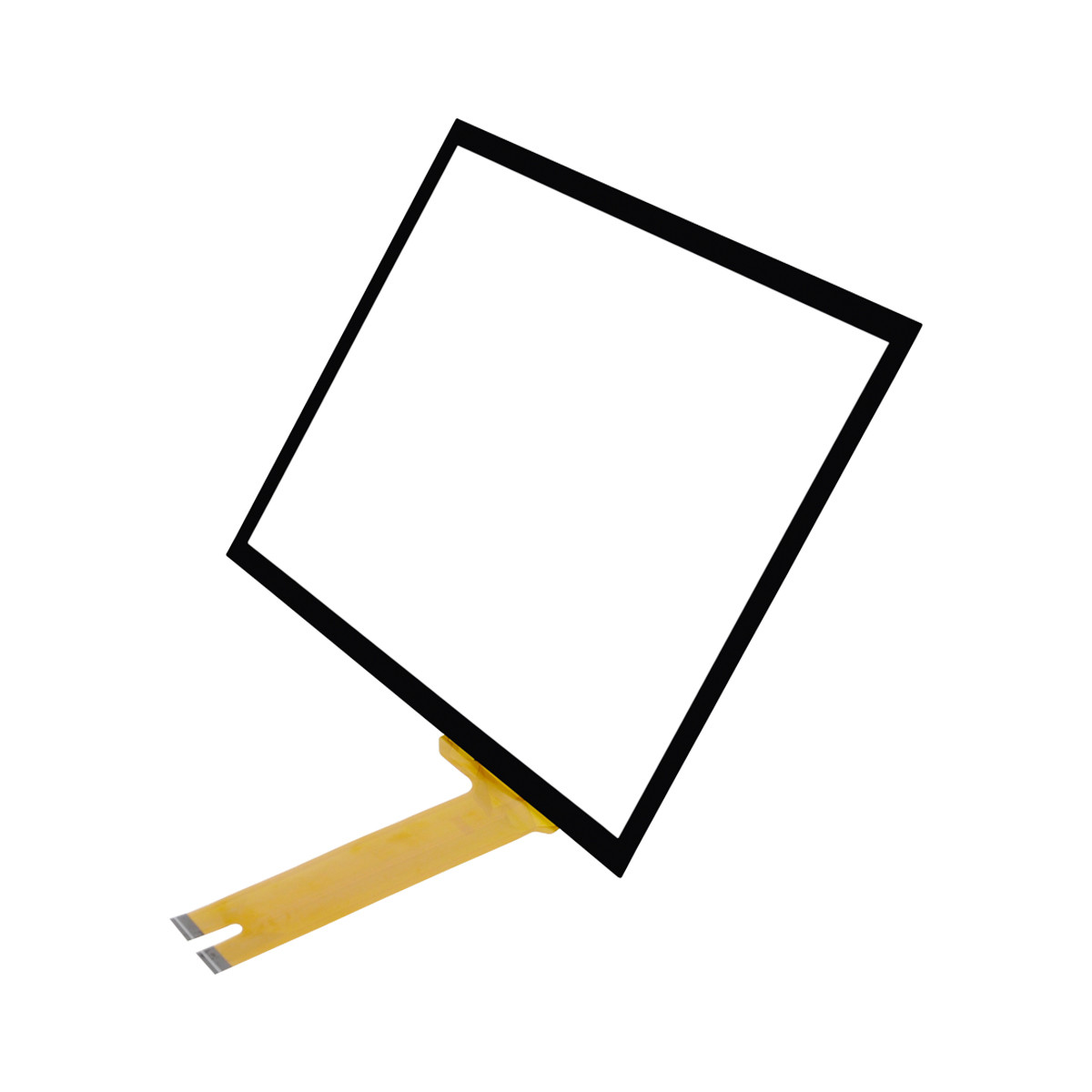

    Picture of Product

    10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface

    Technical Drawing

    10 Point 15" PCT Capacitive PCAP Touch Screen With USB Interface
