    CJTOUCH Industrial Display Monitors , 12.1Inch Resistive Touch Screen Monitor

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : ALAD-K1220T
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    CJTOUCH Industrial Display Monitors , 12.1Inch Resistive Touch Screen Monitor

    Restistive Touch Industrial Display Montiors PC 12.1Inch Industrial PC Panel


    Features:

    • ​Aluminum die–casting chassis, fanless design
    • 12.1'' LED TFT LCD, capacitive/resistive touch
    • In tel Sky lake–U/Kaby lake-U CPU
    • 1*DDR4 2133 SODIMM, Max 16GB
    • 1*Mini PCIe(PCIe+USB)
    • 2*COM, 2*LAN, 4*USB3.0,1*USB2.0,1*Lineout
    • 2.5”HDD Bay,1*mSATA
    • ATX button and remote button
    • DC 9~36V power input

    Specifications:

    System
    CPUGen.6th Sky lake-U Cele ron 3855U; Core I3-6100U; I5-6200U; I7-6500U CPU Gen. 7th Kaby lake-U Cele ron 3865U; Core I3-7100U; I5-7200U; I7-7500U CPU
    ChipsetIn tel SOC
    System Memory1*DDR4 2133 MHz SODIMM, Max 16GB
    BIOSInsyde SPI 64Mbit Flash
    Storage1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA
    Display12.1'' LED backlight TFT LCD and HDWI(4K resolution) , dual display, HD graphics 510/520
    Touch5 wire resistive touch optional projected capacitive touch USB control
    Expansion1*Mini PCIe(PCIe and USB signal)
    Real I/O2*COM: 2*RS232/422/485, DB9, 1*HD-MI,1*Line out 4*USB3.0 Type A, 2*RJ45
    Front I/O1*USB2.0 Type A
    LAN2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps
    AudioReal tek ALC662VD controller, Support 5.1 channel, 2*3W Speaker
    Control SW1*Cmos, 1*AT/ATX, Power button, 2–pin connecter with power switch signal,HDD LED
    Power SupplyDC to DC: 9~36V input, consumption: TDP 12V/2.75A(In tel I5–6200U CPU, 4GB DDR4)
    OS SupplyWins 7, Wins 8.1,Wins 10,Linux

    Mechanical and Environmental

    ConstructionAluminum die–casting front bezel , fin–shaped radiator shell
    Operating Temperature0~50℃ –HDD( –10~55℃ –SSD), with airflow
    Storage Temperature-20~60 ℃
    Operating Humidity10~95%@40, non-condensing
    Shock10g peak acceleration(duration 11ms), in operating with HDD
    Vibration1g 5~500Hz in operating with HDD
    MountingPanel mounting, VESA 100*100
    Dimension(W*H*D):315*259*51mm; mounting cut out(W*H): 303*247mm
    Net Weight2.8kg
    EMCCE, FCC Class A
    LCD
    Type12.1'' TFT LCD
    Resolution1024*768
    Color16.2M
    Pixel Pitch(mm)0.240*0.240(mm)
    Brightness(cd/m2)500
    Viewing Angle

    80°(left), 80°(right), 70°(up),70°(down)

    Operating Temperature
    -30~70℃
    Backlight Lifetime50000 Hours
    Touch
    Type5 wire resistive touch / Projected capacitive touch
    Resolutiongapless
    Light Transmittance83% / 90%
    InterfaceUSB
    Consumption+5V @ 200mA / +5V @ 300mA
    OSWins or Linux
    Click Lifetime35 million times/ 30 million times

    Pictures:

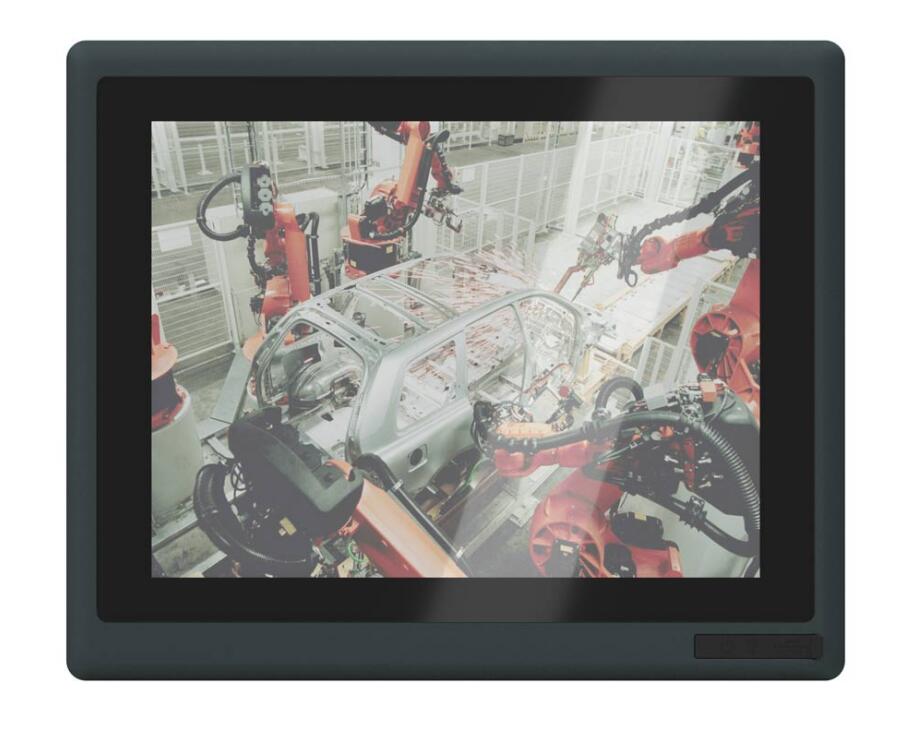

    Quality CJTOUCH Industrial Display Monitors , 12.1Inch Resistive Touch Screen Monitor for sale
