    OEM Industrial Display Monitors , 15'' Resistive Capacitive Touch Screen 1024x768

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : ALAD-K1520T
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    OEM Industrial Display Monitors , 15'' Resistive Capacitive Touch Screen 1024x768

    Resistive Capacitive Touch Screen OEM Industrial Display Monitor Computer PC 15''


    Features:

    • ​Aluminum die–casting chassis, fanless design
    • 15'' LCD , with projected capacitive PCAP touchscreen/5- wire resistive touchscreen
    • 3855U; I3-6100U; I5-6200U; I7-6500U ; 3865U; I3-7100U; I5-7200U; I7-7500U CPU optional
    • 1*DDR4 2133 SODIMM, Max 16GB
    • 1*Mini PCIe, Optional 1*PCI/PCIe X1
    • 4*COM, 2*LAN, 4*USB3.0, 1*USB2.0
    • 2.5'' HDD Bay, 1*M.2
    • ATX button and remote button
    • DC 9~36V power input

    Specifications:

    System
    CPU3855U; I3-6100U; I5-6200U; I7-6500U ; 3865U; I3-7100U; I5-7200U; I7-7500U
    ChipsetIn tel SOC
    System Memory1*DDR4 2133 MHz SODIMM, Max 16GB
    BIOSInsyde SPI 64Mbit Flash
    Storage1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA
    Display15.0'' TFT LCD
    Touch5 wire resistive / PCAP touch screen
    Expansion1*Mini PCIe(PCIe&USB signal),Opt.1*32-bit PCI or 1*PCIe X1
    Real I/O4*COM:2*RS232, 2*RS232/422/485, DB9(when using PCI/PCIe,there are only 2*COM) 1*HD MI,1*Line out
    Front I/O1*USB2.0 Type A
    LAN2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps
    AudioReal tek ALC662VD controller, Support 5.1 channel, 2*3W Speaker
    Control SW1*Cmos, 1*AT/ATX, Power button, 2–pin connecter with power switch signal,HDD LED
    Power SupplyDC to DC: 9~36V input, consumption: TDP 12V/2.95A(In tel I5–6200U CPU, 4GB DDR4)
    OS SupplyWins 7, Wins 8.1,Wins 10,Linux

    Mechanical and Environmental

    ConstructionAluminum die–casting front bezel , fin–shaped radiator shell
    Operating Temperature0~50℃ –HDD( –10~55℃ –SSD), with airflow
    Storage Temperature-20~60 ℃
    Operating Humidity10~95%@40, non-condensing
    Shock10g peak acceleration(duration 11ms), in operating with HDD
    Vibration1g 5~500Hz in operating with HDD
    MountingPanel mounting, VESA 100*100 and 75*75mm, Rack mounting
    Dimension(W*H*D):380*315*56mm; mounting cut out(W*H): 367.3*303.3mm
    Net Weight4.3kg
    EMCCE, FCC Class A
    LCD
    Type15'' TFT LCD
    Resolution1024 X 768
    Color16.2M
    Pixel Pitch(mm)0.297*0.297(mm)
    Brightness(cd/m2)350
    Viewing Angle

    80°(left), 80°(right), 70°(up),70°(down)

    Operating Temperature-20~70℃
    Backlight Lifetime50000 Hours
    Touch
    Typeresistive / capacitive touch
    Resolutiongapless
    Light Transmittance83% / 90%
    InterfaceUSB
    Consumption+5V @ 200mA / +5V @ 300mA
    OSWins or Linux
    Click Lifetime35 million times/ 3 million times

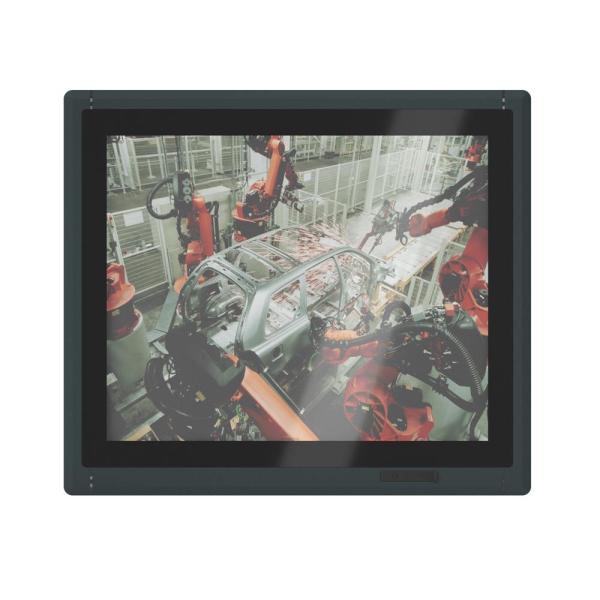

    Pictures:
