    18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : ALAD-K1820T(P)
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis

    18.5 Inch Industrial Fanless Panel Pc Touch Screen Industrial All In One Pc Computer


    Features:

    • Aluminum die-casting chassis, fanless design
    • 18.5'' LED TFT LCD, capacitive touch
    • Sky lake-U I3/I5/I7 CPU
    • 1*DDR4 2133 SODIMM, Max 16GB
    • 1*Mini PCIe (PCIe+USB)
    • 2*COM, 2*LAN, 4*USB3.0
    • 2.5'' HDD Bay, 1*M.2
    • ATX button and remote button
    • DC 9~36V power input

    Specifications:

    System
    CPUI3-6100U , 3855U, I5-6200U,I7-6500U
    ChipsetIn tel SOC
    System Memory1*DDR4 2133 MHz SODIMM, Max 16GB
    BIOSInsyde SPI 64Mbit Flash
    Storage1*2.5' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*M.2 (2242 B-Key)
    Display18.5"
    Touchcapacitive touch sreen
    Expansion

    1*Mini PCIe(PCIe&USB signal)

    2*COM: 2*RS232/422/485, DB9

    Real I/O4*USB3.0 Type A
    1*HD MI
    2*RJ45
    Front I/O1*USB2.0 Type A
    LANIn tel I210AT chip, 10/100/1000 Mbps
    Control SWPower button, 2-pin connecter with power switch signal
    Power SupplyDC to DC: 9~36V input, consumption: TDP 12V/3.72A(In tel I5-6200U CPU, 4GB DDR3L memory)
    OS SupplyWins 7, Wins 8.1,Wins 10,Linux

    Mechanical and Environmental

    ConstructionAluminum die-casting front bezel and chassis, fin-shaped radiator shell
    Operating Temperature0~50℃ –HDD( –10~55℃ –SSD), with airflow
    Storage Temperature-20~60 ℃
    Operating Humidity10~95%@40, non-condensing
    Shock10g peak acceleration(duration 11ms), in operating with HDD
    Vibration1g 5~500Hz in operating with HDD
    MountingPanel mounting, VESA 100*100
    Dimension(W*H*D): 482.3*304.3*59.1; mounting cut out(W*H): 473.5*295.5mm
    Net Weight6.63kg
    EMCCE, FCC Class A
    LCD
    Type18.5'' TFT LCD
    Resolution1366*768
    Color16.2M
    Pixel Pitch(mm)0.300*0.300(mm)
    Brightness(cd/m2)300
    Viewing Angle

    85°(left), 85°(right), 80°(up),80°(down)

    Operating Temperature-10~50℃
    Backlight Lifetime50000 Hours
    Touch
    TypePCAP touch
    Resolutiongapless
    Light Transmittance90%
    InterfaceUSB
    Consumption+5V @ 300mA
    OSWins or Linux
    Click Lifetime3 million times

    Pictures:

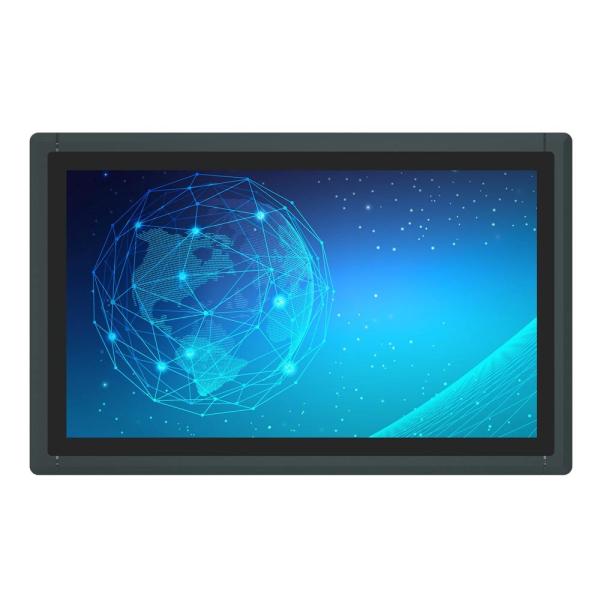

    Quality 18.5 Inch Industrial Touch Screen Panel Fanless Aluminum die casting chassis for sale
