    17'' 19'' Industrial Display Monitors , Industrial Pc Panel 350nits

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : ALAD-K1720T
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    17'' 19'' Industrial Display Monitors , Industrial Pc Panel 350nits

    10.1''/12.1''/15''/17''/19'' Industrial Panel Pc Industrial Display Monitors


    Features:

    • ​Aluminum die–casting chassis, fanless design
    • 17'' LCD , with PCAP touch screen/5 wire resistive touch screen
    • Sky lake–U/Kaby lake-U CPU
    • 1*DDR4 2133 SODIMM, Max 16GB
    • 1*Mini PCIe (PCIe+USB)
    • 2/4*COM, 2*LAN, 4*USB3.0, 1*USB2.0,1*Line out
    • 2.5”HDD Bay, 1*mSATA
    • ATX button and remote button
    • DC 9~36V power input

    Specifications:

    System
    CPU3855U; 3865U; I3 I5 I7
    ChipsetIn tel SOC
    System Memory1*DDR4 2133 MHz SODIMM, Max 16GB
    BIOSInsyde SPI 64Mbit Flash
    Storage1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA
    Display17.0'' LCD
    Touch5 wire resistive touch optional projected capacitive touch
    Expansion1*Mini PCIe(PCIe and USB signal )
    Real I/O

    2*COM: 2*RS232/422/485, DB9,Opt. 2*RS232,DB9,3-wire signal 1*HD MI,1*Line out

    4*USB3.0 Type A

    2*RJ45

    Front I/O1*USB2.0 Type A
    LAN2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps
    AudioRealtek ALC662VD controller, Support 5.1 channel, 2*3W Speaker
    Control SW/LED1*Cmos, 1*AT/ATX, Power button, 2–pin connecter with power switch signal,HDD LE
    Power SupplyDC to DC: 9~36V input, consumption: TDP 12V/2.95A(In tel I5–6200U CPU, 4GB DDR4)
    OS SupplyWins 7, Wins 8.1,Wins 10,Linux

    Mechanical and Environmental

    ConstructionAluminum die–casting front bezel
    Operating Temperature0~50℃ –HDD( –10~55℃ –SSD), with airflow
    Storage Temperature-20~60 ℃
    Operating Humidity10~95%@40, non-condensing
    Shock10g peak acceleration(duration 11ms), in operating with HDD
    Vibration1g 5~500Hz in operating with HDD
    MountingPanel mounting, VESA 100*100, Rack mounting
    Dimension(W*H*D):415.5*360.5*59mm; mounting cut out(W*H): 407*352mm
    Net Weight6.1kg
    EMCCE, FCC Class A
    LCD
    Type17'' TFT LCD
    Resolution1280 X 1024
    Color16.2M colors
    Pixel Pitch(mm)0.297*0.297(mm)
    Brightness(cd/m2)350
    Viewing Angle

    80°(left), 80°(right), 80°(up),80°(down)

    Operating Temperature-20~70℃
    Backlight Lifetime50000 Hours
    Touch
    Type5 wire resistive / PCAP touch
    Resolutiongapless
    Light Transmittance83% / 90%
    InterfaceUSB
    Consumption+5V @ 200mA / +5V @ 300mA
    OSWins or Linux
    Click Lifetime35 million times/ 3 million times

    Package :

    EPE package inside, carton package outside and 1 or 2 pieces in one carton


    Pictures:

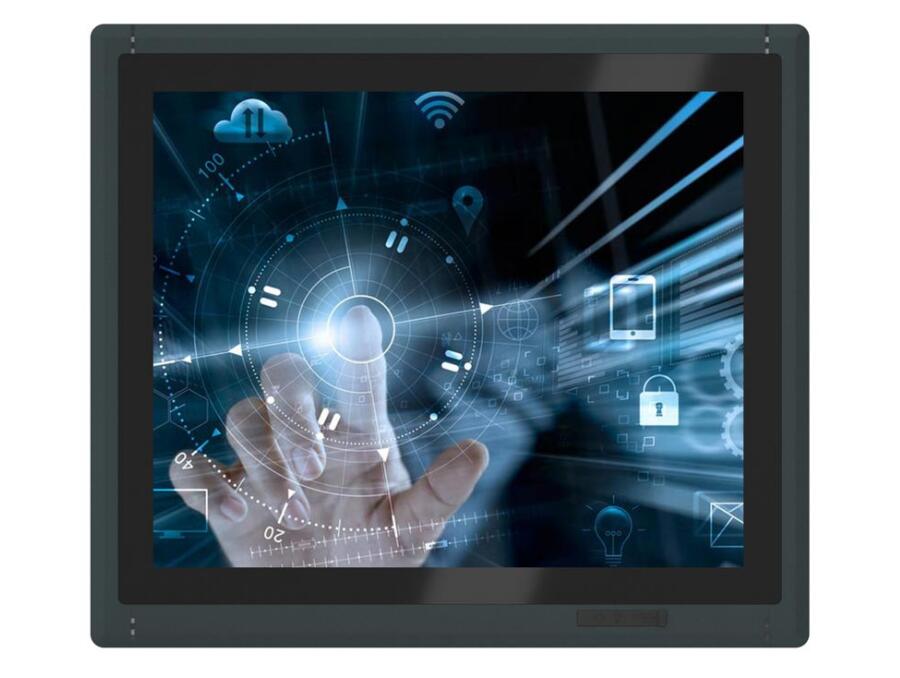

    Quality 17'' 19'' Industrial Display Monitors , Industrial Pc Panel 350nits for sale
