    Waterproof IP65 IP66 Industrial Touch Screen Monitor 17 Inches

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : WPPC-H1780T
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

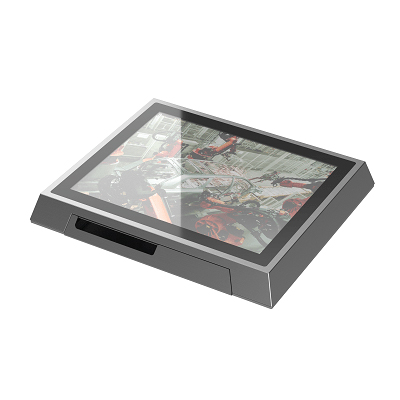

    Waterproof IP65 IP66 Industrial Touch Screen Monitor 17 Inches

    Waterproof IP65 IP66 PC Indstrial Display Monitors Computer 17 Inches


    Features:

    • Cele ron J1900 2.0-2.42G CPU
    • 1-Ch DDR3L 1333MHZ SODIMM, Up to 8GB
    • SUS304 grade stainless steel enclosure
    • 3.0mm 5052 aluminum rear cover
    • Full Flat bezel design, fanless
    • Totally IP65/IP66(except for IO interface )
    • Support for standard VESA 100*100 mounting
    • 17'' LED TFT LCD, Resistive/Capacitive touch
    • 1*HD MI, 1*VGA,2*GbE LAN, 1*USB3.0, 3*USB2.0
    • 1*Mini PCIe (PCIe+USB, w/SIM)
    • 1*Simple-swap 2.5” SATA bay , 1*mSATA
    • DC 9~36V power input

    Specifications:

    System
    CPUCele ron J1900 2.0-2.42G CPU
    ChipsetIn tel SOC
    System Memory1-Ch DDR3L, 1333MHz SODIMM MAX 8GB
    BIOSAMI UEFI BIOS
    Storage1*Simple-swap 2.5” SATA bay;1*mSATA(full size), support AHCI
    Display17'' LCD
    TouchResistive/Capacitive touch
    Expansion1*Mini PCIe(full size) with PCIe X1+USB,with SIM slot 1*Full size mSATA with USB2.0
    Real I/O

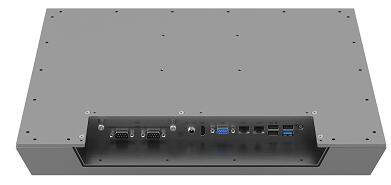

    2*RJ45 GbE LAN(with LED); 1*USB3.0 Type A; 3*USB2.0 Type A 1*HD MI; 1*VGA

    LAN2*In tel I211AT PCIe Gig. Ethernet, 10/100/1000Mbps
    LED1*Power LED; 1*HDD LED; 3*CPU Temp.LED(Red is warning, Yellow is high, Green is normal)
    AudioRealtek ALC662VD controller, Support 5.1 channel
    Control SW1*Power button, 1*AT/ATX Select dip
    Power SupplyDC 9~36V, D-Jack w/ M8 connector, Comsuption: 12V/ 2.5A
    Watchdog TimerWatchdog timeout programmable via software 1 to 255 second
    OS SupplyWins 7, Wins 8.1, Wins 10, Linux Fedora Ubuntu

    Mechanical and Environmental

    Construction

    The whole body: SUS304 Stainless steel Back cover: 3.0mm 5052 Aluminum IO cover: 1.0mm SECC/SGCC

    Operating Temperature0~60℃
    Storage Temperature-40°C~85°C
    Operating Humidity10~90%@40℃, non-condensing
    Shock10g peak acceleration(duration 11ms)
    Vibration1g 5~500Hz
    MountingDesktop VESA(100mm*100mm) mounting
    Dimension(W*H*D):429.51mm*364.51mm*51.6mm
    Net Weight5.57KG
    EMCCE, FCC Class B
    LCD
    Type17 LCD
    Resolution1280 * 1024
    Color16.19M colors
    Pixel Pitch(mm)0.264*0.264
    Brightness(cd/m2)600
    Viewing Angle80 Degree(left), 80 Degree(right), 70 Degree(up), 80 Degree(down)
    Operating Temperature-20~70℃
    Backlight Lifetime70000 Hours
    Touch
    Type5 wire resistive touch / projected capacitive touch
    Resolutiongapless
    Light Transmittance83% / 90%
    InterfaceUSB
    Consumption+5V @ 200mA / +5V @300mA
    OSWins or Linux
    Click Lifetime35 million times / 3 million times

    Pictures:


    Quality Waterproof IP65 IP66 Industrial Touch Screen Monitor 17 Inches for sale
