    21.5'' Industrial Display Monitors , 1920x1080 Embedded Touch Panel Pc

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : ALAD-K2120T(P)
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    21.5'' Industrial Display Monitors , 1920x1080 Embedded Touch Panel Pc

    21.5'' Industrial Resistive Touch Screen Embedded Panel PC Display Monitors Computer


    Features:

    • Aluminum die–casting chassis, fanless design
    • 21.5'' LED TFT LCD, capacitive/resistive touch
    • Sky lake–U/Kaby lake-U CPU
    • 1*DDR4 2133 SODIMM, Max 16GB
    • 1*Mini PCIe (PCIe+USB),Opt.1*32-bit PCI/PCIe X1
    • 4*COM, 2*LAN, 4*USB3.0, 1*USB2.0,1*Line out
    • 2.5”HDD Bay, 1*mSATA
    • ATX button and remote button
    • DC 9~36V power input

    Specifications:

    System
    CPU3855U/ I3-6100U/ I5-6200U/ I7-6500U /3865U/ I3-7100U/ I5-7200U/ I7-7500U
    ChipsetIn tel SOC
    System Memory1*DDR4 2133 MHz SODIMM, Max 16GB
    BIOSInsyde SPI 64Mbit Flash
    Storage1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA
    Display21.5'' LCD
    Touchresistive touch/ PCAP touchsreen
    Expansion1*Mini PCIe(PCIe and USB signal),Opt.1*32-bit PCI or 1*PCIe X1
    Real I/O

    4*COM:2*RS232, 2*RS232/422/485, DB9(when using PCI/PCIe,there are only 2*COM) 1*HD MI,1*Line out

    4*USB3.0 Type A

    2*RJ45

    Front I/O1*USB2.0 Type A
    LAN2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps
    AudioRealtek ALC662VD controller, Support 5.1 channel, 2*3W Speaker
    Control SW1*Cmos,1*AT/ATX,Power button, 2–pin connecter with power switch signal,HDD LED
    Power SupplyDC to DC: 9~36V input, consumption: TDP 12V/4.12A( I5–6200U CPU, 4GB DDR4)
    OS SupplyWins 7, Wins 8.1, Linux

    Mechanical and Environmental

    ConstructionAluminum die-casting front bezel and chassis, fin-shaped radiator shell
    Operating Temperature0~50℃ -HDD(-10~55℃ -SSD ), with airflow
    Storage Temperature-20~60 ℃
    Operating Humidity10~95%@40, non-condensing
    Shock10g peak acceleration(duration 11ms), in operating with HDD
    Vibration1g 5~500Hz in operating with HDD
    MountingPanel mounting, VESA 100*100 and 75*75mm
    Dimension(W*H*D):546.9*344.7*64.1mm; mounting cut out(W*H): 537.5*335.3mm
    Net Weight8.15KG
    EMCCE, FCC Class A
    LCD
    Type21.5 'TFT LCDE
    Resolution1920*1080
    Color16.7M colors
    Pixel Pitch(mm)0.248*0.248
    Brightness(cd/m2)300
    Viewing Angle89 Degree(left), 89 Degree(right), 89 Degree(up), 89 Degree(down)
    Operating Temperature0~50℃
    Backlight Lifetime50000 Hours
    Touch
    Type5 wire resistive touch / Projected capacitive touch
    Resolutiongapless
    Light Transmittance83% / 90%
    InterfaceUSB
    Consumption+5V @ 200mA / +5V @ 300mA
    OSWins or Linux
    Click Lifetime15 million times / 3 billion times

    What We can offer ?

    ♦ IR touch screen/Frame

    ♦ SAW touch screen

    ♦ PCAP touch screen panel

    ♦ 4wire/5wire resistive touch screen

    ♦ PCAP/NANO touch foil/film

    ♦ PCAP flat screen touch monitor

    ♦ SAW touch screen monitor

    ♦ IR Open frame touch display

    ♦ Desktop touch monitor

    ♦ Desktop all in one touch PC

    ♦ PCAP all in one touch computer

    ♦ Bar lcd panel

    ♦ High brightness advertising player/advertising machine

    ♦ Curved touch display

    ♦ Full bonding TFT lcd panel with touch screens

    ♦ Touch monitor with mirror

    ♦ OEM/ODM/Customization

    Industrial display monitors PC

    Pictures:

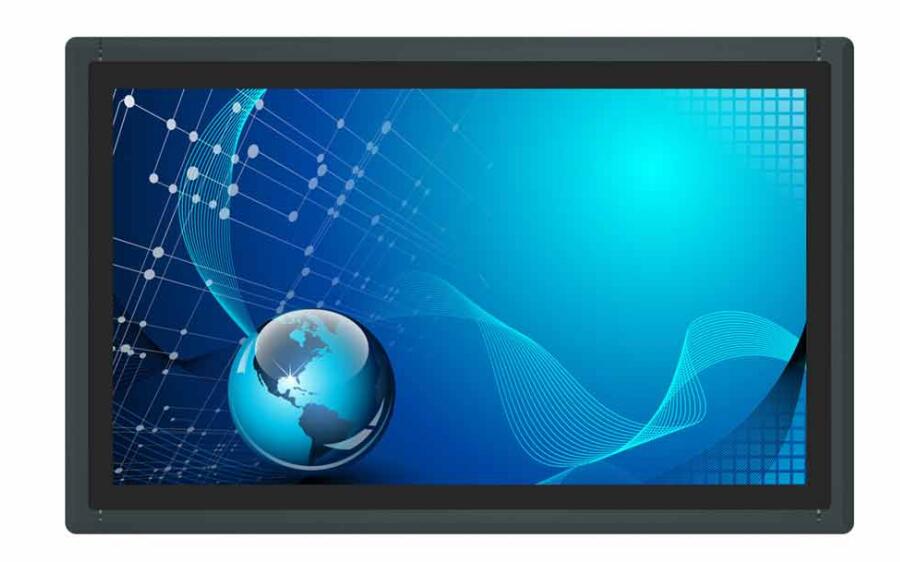

    Quality 21.5'' Industrial Display Monitors , 1920x1080 Embedded Touch Panel Pc for sale
