factory custom 22 inch SAW touchscreen panel TFT/ LCD Display
touchscreen monitor
1.2 point multi SAW touch screen monitor
2. High quality panel with strong metal case
3.Competitive price , quickly delivery time
4.Adopt industrial control HD LCD screen +LED backlight
screen,highlight picture,perfect color.
5.Compatible with various industrial systems/application.
6.Support non-touch,resistive touch,capacitive touch.
7.Whole system is equipped with WI-FI module,more convennient.
8.Build-in 2.0 speakers,support 1080P HD video.
9.CE,FCC,CCC,ROHS certificate.
10.Complete machine triple protection:explosion-proof, flameproof,
moisture-proof.
11.Shock resistance standard reach GB2423,protection during
transportation/working on the sea.
12.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV(
customized MAX 16KV).
13.Anti surge design,it is proper functioning during Instantaneous
voltage rising into 280v.
Specification :
| Model | COT220-APK02 |
| Series | Water-proof and Compact |
| Monitor Dimensions | Width: 528mm Height: 345mm Depth: 54.6mm |
| Weight(N.W/G.W) | 5Kg / 10Kg (Approx.) |
| LCD Type | 22"SXGA Color TFT-LCD (Panel Model :G220EG01 V0) |
| Video Input | Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1680(RGB)×1050 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio,
Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1years for SAW Sensor; 1years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 473.76(H)×296.1(V) mm |
| Resolution | 1680(RGB)×1050 |
Dot Pitch(mm | 0.094×0.282 mm (H×V) |
| Nominal Input Voltage VDD | 5.0V (Typ.) |
| Viewing angle (v/h) | 85/85/80/80 (Typ.)(CR≥10) |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 cd/m² (Typ.) |
| Response Time(Rising/Falling) | 1.3/3.7 (Typ.)(Tr/Td) ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 50000 |
| NOTE:The LCD Specification will change follow the relevant LCD
panel brand and model |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |
Touch monitor Pictures

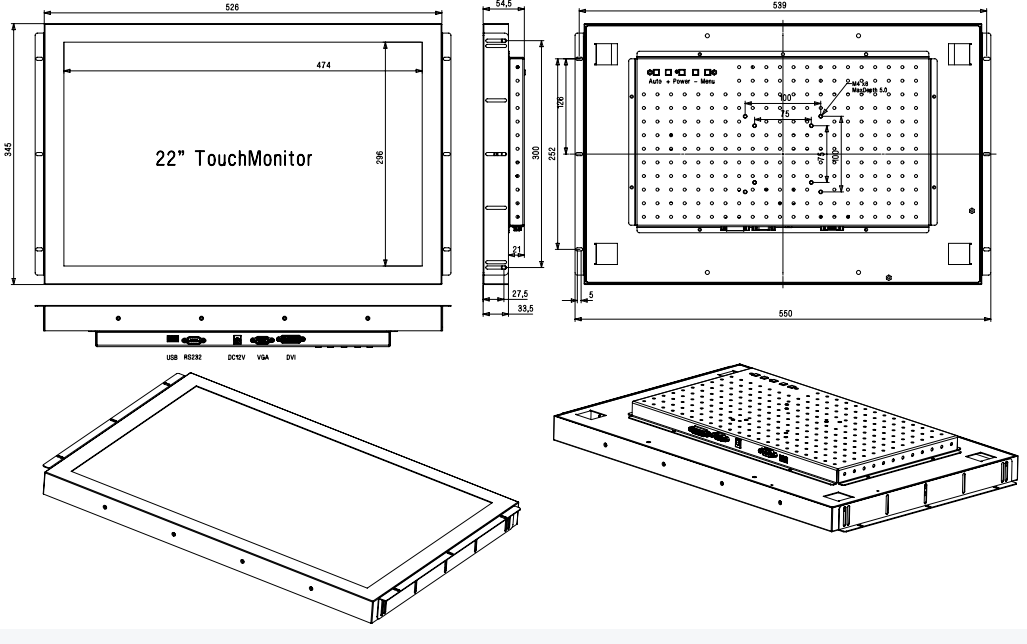

Products Drawing :
