12.1 Inch SAW Touch Monitor , USB Surface Acoustic Wave Touchscreen 1024×768

Ask Lasest Price
Brand Name :	CJTOUCH
Model Number :	COT121-APF02
Certification :	FCC/CE
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T,
Supply Ability :	10000(pcs )per quarter
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

12.1 Inch SAW Touch Monitor , USB Surface Acoustic Wave Touchscreen 1024×768

Custom 12.1 inch SAW Touchscreen monitor USB interface touch UHD Image LCD display monitor

Application Filed Usage
Self-service Kiosk,Advertising Signage,Whiteboard,Touch Table,Payment ATM,POS,Vending ect.
Industrial / Anti Glare / Anti Reflection / Anti Fingerprint ect.
Tempered / Vandalproof / Waterproof / Anti Sunlight / Dustproof / AR / AG / AF ect option;
Structure Design
Openframe / Wall mounted / Embedded / Landscape / VESA and Brackets Supported ;

About US:

Professional RD team, pre-sales and after-sales service,,Provide you with professional solutions.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products,

Main Feature
1.Touch function and LCD display all in one solution, performance excellent, good appearance;
2.Higher sensitivity and response speed than same product, very smoothly when touch and draw line;
3.Bottom base detachable, can be wall mounted or bracket installation;
4.High life time, LCD upgrade or change will not cause the touch monitor appearance different;
5.Hight brightness, high contrast ratio, quick response time, multi color support, wide viewing angle;
6.beautiful out-looking, narrow frame design, slender and super thin;
7.National standard professional production line, one million dust-free environment ,screen body and LCD screen fit;
8.Certification: FCC,CE.

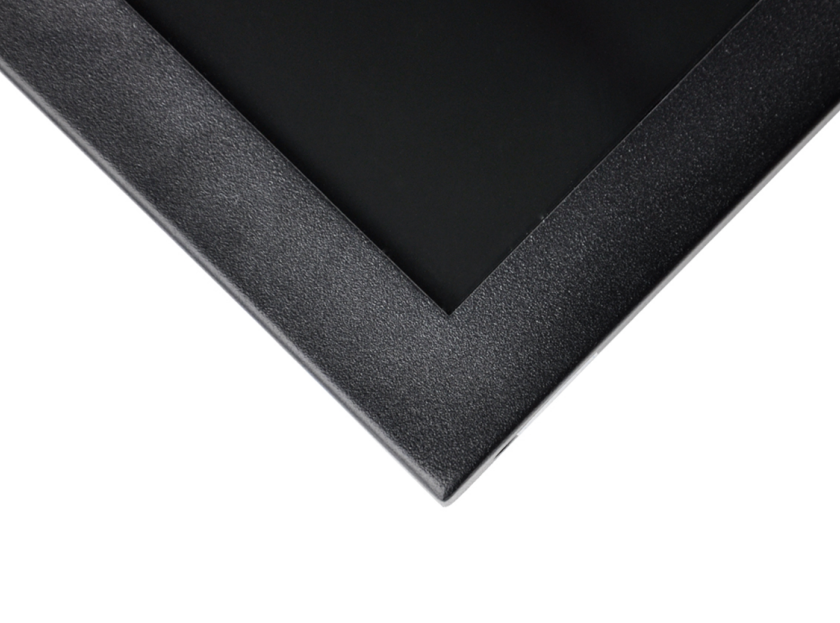

Touch monitor Pictures:

Specification :

Model	COT121-APF02
Series	Water-proof and Compact
Monitor Dimensions	Width: 294mm Height: 254mm Depth: 44.5mm
Weight(N.W/G.W)	4Kg / 7.8Kg (Approx.)
LCD Type	12.1"SXGA Color TFT-LCD (Panel Model :G121EG01 V0)
Video Input	Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally
Recommend Resolution	1024×768
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical
Regular Warranty	1 years for SAW Sensor; 3 years for controller; 1 year for LCD
Agency Approval	FCC,CE

2.LCD specs

Active Area(mm)	245.76 × 184.32 mm (H×V)
Resolution	1024×768
Dot Pitch(mm)	0.120×0.120
Signal Electrical Voltage Input	3.3V (Typ.)
Viewing angle (v/h)	80/80/80/80 (Typ.)(CR≥10)
Contrast	700 : 1(Typ.)
Luminance(cd/m2)	450 cd/m² (Typ.)
Response Time(Rising/Falling)	5/11 (Typ.)(Tr/Td)
Support Color	262K/16.2M (6-bit / 6-bit + FRC)
Backlight MTBF(hr)	WLED , 30K hours , With LED Driver
NOTE:The LCD Specification will change follow the relevant LCD panel brand and model

3.Touch screen

Type	Cjtouch Surface Acoustic Wave(SAW)
Resolution	4096*4096
Light Transmission	92%
Touch Life Cycle	50 millions
Touch Response time	16ms
Touch System Interface	RS-232 and USB interface
Power consumption	5v

Products Drawing :
