    Ultra narrow Frame Outdoor Advertising Kiosk 55 Inch Quickly Dissipate Heat

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : IK-550W-F5N-2000
    Certification : CE , FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500pcs per Week
    Delivery Time : 15 Work Days
    • Product Details
    • Company Profile

    Ultra narrow Frame Outdoor Advertising Kiosk 55 Inch Quickly Dissipate Heat

    55 Inch Outdoor Advertising Kiosk Floor Standing Industrial Quickly Dissipate Heat IP65 Ultra-narrow Frame Wall Mount

    Main Features of ​55 inch outdoor lcd advertising kiosk

    • It adopts industrial-grade high-reliability modular design, which can be professionally designed according to customer needs. The galvanized steel shell is waterproof, sun-proof, anti-corrosion, and explosion-proof, and reaches IP55 standards. More environmentally friendly, high reliability, good stability, especially suitable for working in harsh environments;

    • Using industrial-grade 16.7M color ultra-high-definition LCD screen, high resolution, high contrast, high brightness, better detail performance, brighter video images, stronger stereo perception, and no ghosting delay.

    • Built-in intelligent temperature control system, dual-channel air-cooling system, can quickly and effectively control the working temperature of the equipment, but also work to reduce noise.

    • Built-in intelligent protection system, leakage and overload protection, over-voltage protection, lightning protection device, over-temperature protection, etc., making it safer to use.

    • The built-in network control advertising system can control multiple devices placed in different places to play designated content at the same time, and can monitor the current working conditions of multiple devices and the content played on the display in real time, and can customize a variety of display effect templates;​​

    ​Application of 55 inch out lcd advertising kiosk

    • Shopping mall, Walking street , Retails , Restaurants

    • Toll station, Bank , Bus stop sign , Airports, Parking Lot , Train stations

    • etc.

    Specification of ​55 inch outdoor lcd advertising kiosk

    Structure

    Installation method

    Wall Mounted

    Appearance size

    Horizontal:1420*980*180 mm

    Appearance color

    Silver or optional

    Material & Corrosion protection

    1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder

    Glass

    5mm tempered glass

    Protection level

    IP55/ IP65 (Optional)

    Machine weight

    ≤110KG

    LCD screen

    Panel Size

    55 inch LG

    Panel type

    LCD Panel

    Display ratio

    16:9

    Display size

    1209*680 mm

    Viewing angle

    178

    Response time

    6ms

    Resolution

    1920(RGB)×1080(UHD)

    Contrast ratio

    1200:1

    Brightness

    2000 nits

    Color

    16.7 M

    Service life

    More than 50000 hours

    Touch (Optional configuration)

    Player

    Operation system (optional)

    Android 5.1

    Main Board

    Android RK3288

    Memory

    2G

    Flash

    8G (support 32G)

    Main frequency

    1.8GHz

    Network support

    Ethernet,WiFi

    3G/4G module function (optional, default none)

    Bluetooth

    Support onboard Bluetooth function (optional, default none)

    File system

    Operating system

    Windows I5 and above / Android 5.1 and above

    Languages

    Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language

    Basic interface (Internal interface)

    USB2.0 Interface

    ×4

    VGA output

    ×1

    HDMI output (optional)

    ×1

    MicroPhone

    ×1

    RTC real time clock

    1 clock battery holder

    AV input

    ×4

    Audio output

    Power amplifier output, can directly drive 2*10W/8Ω speakers

    SD card

    1 standard SD card slot, maximum support 32GB

    Working environment

    Temperature control

    Air cooling (air conditioning optional, cost extra)

    Operating temperature

    -30°C - +50°C(air cooling)

    Working humidity

    5% to 90%

    Storage temperature

    -20°C to 60°C

    Storage humidity

    10%~85%

    Power

    Input voltage

    AC220V

    Normal working power consumption

    ≤400W

    Standby power consumption

    <30W

    Certificate

    CE, FCC

    Ultra narrow Frame Outdoor Advertising Kiosk 55 Inch Quickly Dissipate HeatUltra narrow Frame Outdoor Advertising Kiosk 55 Inch Quickly Dissipate Heat

    Ultra narrow Frame Outdoor Advertising Kiosk 55 Inch Quickly Dissipate Heat

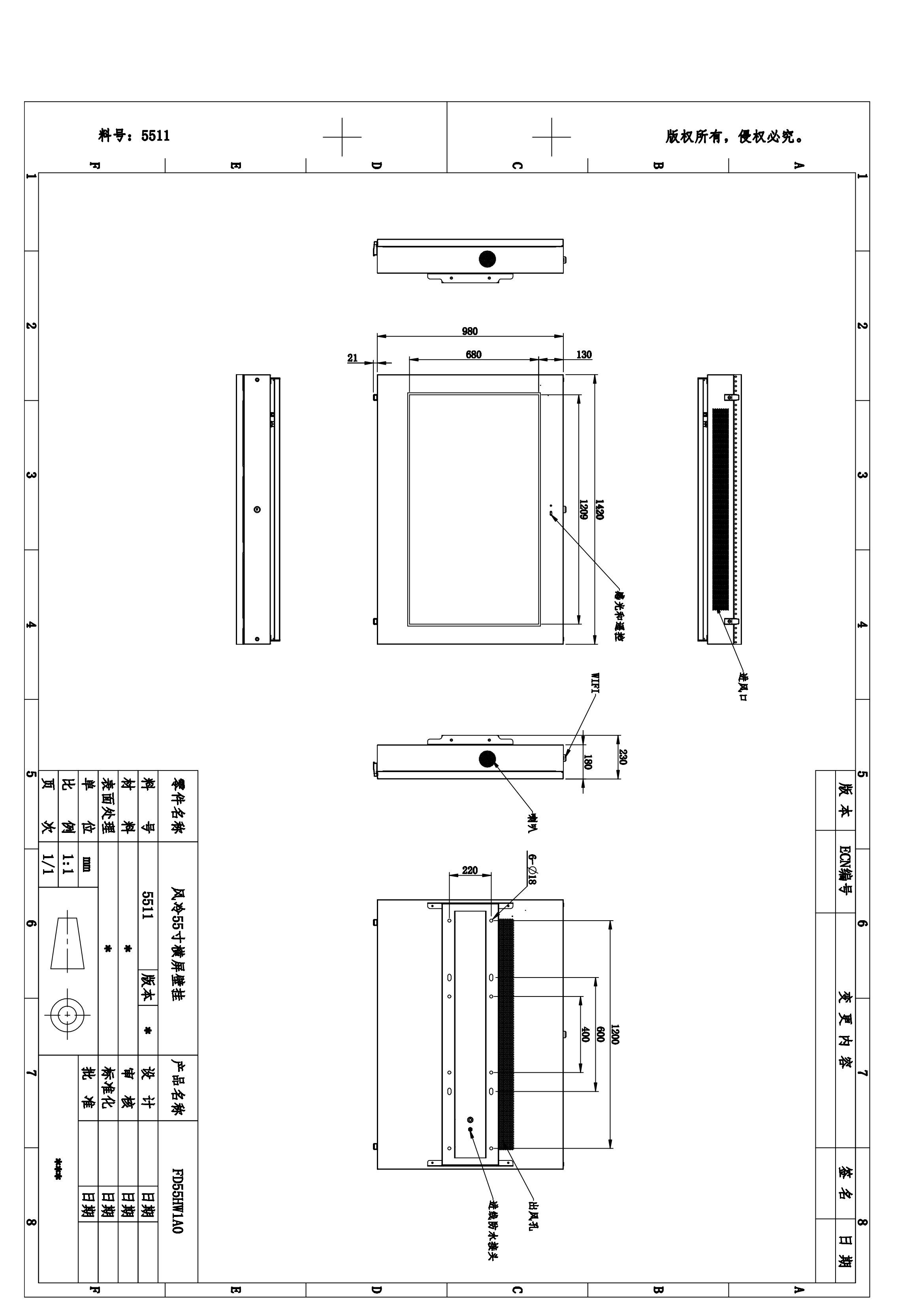

    Drawing of ​55 inch outdoor lcd advertising kiosk

    Ultra narrow Frame Outdoor Advertising Kiosk 55 Inch Quickly Dissipate Heat
