1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor

    Buy cheap 1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor from wholesalers

    Buy cheap 1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor from wholesalers
    • Buy cheap 1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor from wholesalers

    1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : CCT860-CYK
    Certification : CE / FCC / RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500pcs per week
    Delivery Time : 8 work days
    • Product Details
    • Company Profile

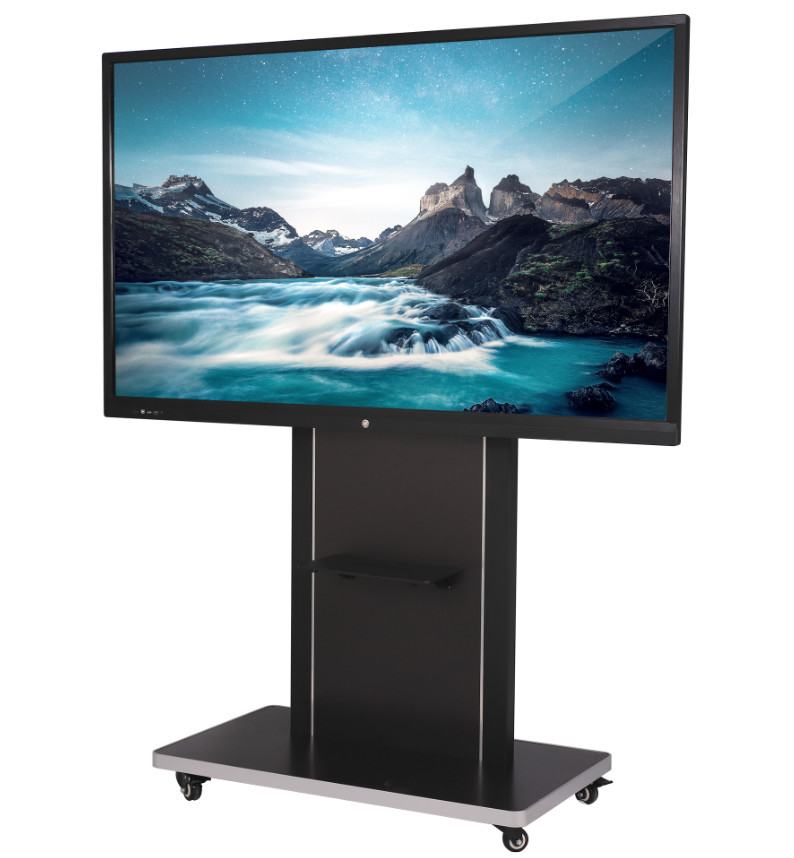

    1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor

    1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor


    86 Inch Lcd Touch Screen Smart AIO Machine IP65 High Clarity Intelligent Interconnect PCAP Monitor Waterproof Dustproof


    Detail Features Of Touch Screen Teaching Board

    Connected to a built-in or external PC, it is a large touch PC that can be controlled and operated by fingers, display advertisements, conference PPT, classroom courses, play movies, etc.
    Using Android+Windows system intelligent interconnection. Provide a variety of optional computer configuration combinations to meet the configuration requirements of different customers in different usage scenarios;
    Use the whiteboard intelligent interactive system for intelligent interactive education and remote conference functions, while supporting wireless connection and screen sharing;
    High-definition LCD high-definition screen, high-definition display, better detail performance, brighter video picture, stronger three-dimensional effect, no ghosting delay.
    Adopt PCAP touch screen, 4096*4096, maximum support 20-point touch;
    Switch between different signal source channels by physical button operation
    Front USB3.0, USB2.0 interface, faster connection speed

    Specifications Of Touch Screen Teaching Board

    Android

    CPU

    Quad-core ARM1.7,1.8GHz

    RAM

    2G/4G (can optional)

    Memory

    8GB/16GB/32GB/64G (can optional)

    HDMI Interface

    HDMI output * 1

    TF card Interface

    TF card * 1,(Expandable to 64GB)

    USB Interface

    USB*2 (USB Host*1,SUB OTG*1)

    RJ-45 Interface

    network interface *1

    headphone interface

    3.5mm Stereo Headphone Output *1

    Windows

    CPU

    Intel Core I3 I5 I7(can optional)

    Memory

    standard 4G/8G DDR3(can optional)

    Storage

    128G/256G/512G SSD MSATA(can optional)

    OS

    Windows 7/Windows 10(can optional)

    Network interface*1

    1* RTL8111E Ethernet chips,support remote wake up

    VGA interface

    1*VGA DB15 interface

    HDMI interface

    1*HDMI 1.4 interface

    USB interface

    2*USB3.0 interface 2*USB2.0 interface

    Audio interface

    1*LIN-OUT 1*MIC-IN

    Touch

    Touch technology

    Capacitive induction technology

    Multi touch

    Max. Support 20 points touch

    Writing style

    Use your fingers or other opaque sensing media

    Durability

    >80 million single touch

    Response Time

    8ms

    Touch deviation

    <2mm

    Touch screen glass

    Fully tempered AG anti-glare glass,Transmittance : >90%

    Surface hardness

    Mohs 7

    DisplayLCD Panel86" LCD HD screen
    Resolution1920*1080/2160*3840(2K/4K can optional)
    Visual area1895*1066 mm
    Viewing angle165/165/150/150(L/R/U/D)
    Display modeBlack , IPS
    Contrast ratio1000:1
    Brightness350cdm
    Screen scale16:09
    Net wortWiFiSupport WIFI-2.4G (Expandable to BT-4.0)
    Ethernet10M/100M Network port
    BluetoothBluetooth 4.0
    Media playVideo formatSupport RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 ect.
    Audio formatMP3/WMA/AAC etc.
    Picture formatSupport BMP,JPEG,PNG,GIF ect.
    OtherLoudspeaker8 ohms 10 watts
    OSD languageMultilingual OSD operations in English and Chinese
    Input voltageAlternating current:100~240v 50/60HZ
    Power≤450W
    Use environmentOperating stability 0--50℃/relative humidity≤80%/storage humidity -10~+60℃
    AuthenticationCE/FCC/RoHS
    AccessoriesInstruction manualStandard configuration
    Power cableNational standard Power cable 1.8 metre
    Package sizeCarton size2100x1270x225mm

    1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor

    1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor

    1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor

    Drawing Of Touch Screen Teaching Board

    1.8GHz Touch Screen Teaching Board IP65 PCAP Touch Screen Monitor
