Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product

    Buy cheap Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product from wholesalers

    Buy cheap Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product from wholesalers
    • Buy cheap Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product from wholesalers
    • Buy cheap Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product from wholesalers

    Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : CIP700AP-4K-DNA10
    Certification : CE / FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 500pcs/week
    Delivery Time : 1-2 working days
    • Product Details
    • Company Profile

    Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product

    70inch IR touch screen,advertising product touch overlay touch screen overlay kits

    CJTouch’s infrared touchscreens provide optical sensor technology for applications in harsh or glass-free environments. Featuring a low profile
    with nearly pixel-level touch resolution and no parallax, CJTouch touchscreens operate in extreme temperature, shock,vibration, and lighting conditions. The display is protected by a choice of glass or acrylic overlays optimized for optical clarity, security, or safety.
    CJTouch touchscreens provide stable,drift-free operation while delivering an extremely sensitive, accurate touch response with no touch activation force required.

    CJTouch touchscreens are the ideal choice in many industrial automation, transportation, and in-vehicle applications,POS terminals, and medical equipment.

    Benefits
    Low profile, high resolution
    No parallax
    Highest clarity
    High durability,
    vandal resistance, and safety Operates

    Applications
    Food processing
    Industrial automation
    Kiosks
    Medical equipment
    n-vehicle and transportation
    Point-of-sale (POS) terminals


    Specification of Product

    MECHANICAL
    P/NCIP Slim series
    Overlay Thickness14.6 mm
    Overlay Frame Width19.1 mm
    HousingAluminum frame/ Plastic frame
    TOUCH CHARACTERISTICS
    Input MethodFinger or touch pen
    Touch PointsNA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points
    Touch Activation ForceNon Minimum activation force
    Position Accuracy1mm
    Resolution4096(W)×4096(D)
    Response TimeTouch: 6ms
    Drawing : 6ms
    Cursor Speed120 dot/sec
    Glass4mm glass Transparency : 92%
    Object Touch Size≥ Ø5mm
    Touch IntensityOver 60 millions single touch
    ELECTRICAL
    Operating VoltageDC 4.5V ~ DC 5.5V
    Power1.0W (100mA at DC 5V)
    Anti -Static Discharge (Standard :B)Touch Discharge,Grade 2:Lab Vol 4KV
    Air Discharge,Grade 3:Lab Vol 8KV
    ENVIRONMENT
    Temperatureoperating:-10 °C ~ 60 °C
    storage:-30°C ~ 70 °C
    Humidityoperating:20% ~85%
    storage:0%~95%
    Relative Humidity40 °C,90% RH
    Anti – glare TestIncandescent lamp (220V,100W) ,
    operating distance over 350mm
    Altitude3,000m
    InterfaceUSB2.0 full speed
    Seal AbilityIP64 Anti-Spill (Customizable to IP65 Waterproof)
    Working EnvironmentDirectly Under sunlight ,indoor and outdoor
    Application of DisplayTouch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
    Software(Firmware)
    Operate systemWindows 7,Windows 8,Windows 10, Andriod,Linux
    Calibration toolPrecalibrated & Software can be download in CJTouch Website
    VID1FF7
    PID0 013

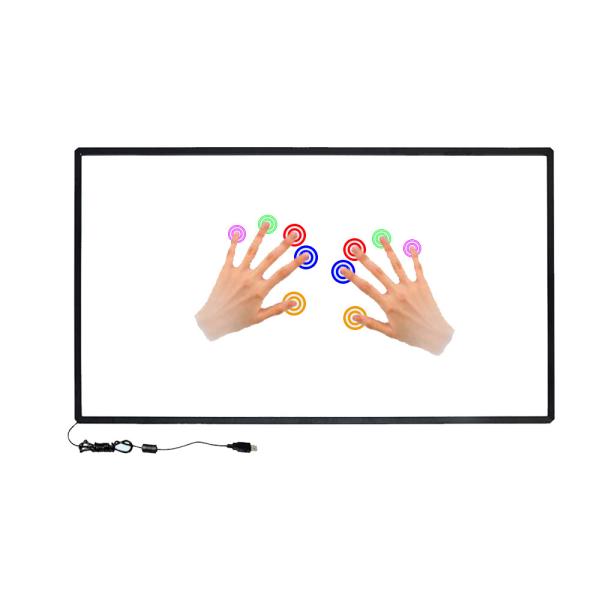

    Picture of Product

    Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising ProductAntilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product

    Technical Drawing

    Antilight 70inch Infrared Touch Screen Overlay Kits For Advertising Product
