Vandalproof PCAP Touch Monitor 8 Inch With Open Frame Luminance

Ask Lasest Price
Brand Name :	CJTOUCH
Model Number :	COT080-CPF02
Certification :	RoHS, CE, FCC
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000pcs per quarter
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Vandalproof PCAP Touch Monitor 8 Inch With Open Frame Luminance

Vandalproof 8 inch Flat Screen Open Frame PCAP Touch Monitor with 10 points touch

What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.

8 inch PCAP touch monitor Features:

Projected capacitive touch technology
High quality LCD display panel with excellent viewing angle
Achieve 5/10 points multi touch
Multilingual on-screen display (OSD)

8 inch Capacitive touch monitor specification :

General
Model	COT080-CPF02
Series	Open frame
Monitor Dimensions	Width: 209mm Height: 172mm Depth: 42mm
LCD Type	8” Active matrix TFT-LCD
Video Input	VGA and DVI
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)	162.048(W) × 121.536(H) mm
Resolution	1024×768 @60Hz
Dot Pitch(mm)	0.15825×0.15825 mm
Nominal Input Voltage	+3.3V(Typ)
Viewing angle (v/h)	80/80/80/80(Typ.)(CR≥10) (Top/Button/Left/Right)
Contrast	700:1
Luminance(cd/m2)	400
Response Time(Rising)	25msec
Support Color	16.7M Colors
Backlight MTBF(hr)	Min 20000 hrs
Touchscreen Specification
Type	Cjtouch Projected Capacitive touch screen
Multi touch	5points touch
Touch Life Cycle	10 millions
Touch Response time	8ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /4A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating Temp.	0～50°C
Storage Temp.	-20～60°C
Operating RH:	20%～80%
Storage RH:	10%～90%

Components:

USB Cable 180cm*1 Pcs,

VGA Cable 180cm*1 Pcs,

Power Cord with Switching Adapter *1 Pcs,

Bracket*2 Pcs

8 inch PCAP touch monitor drawing:

Vandalproof PCAP Touch Monitor 8 Inch With Open Frame Luminance

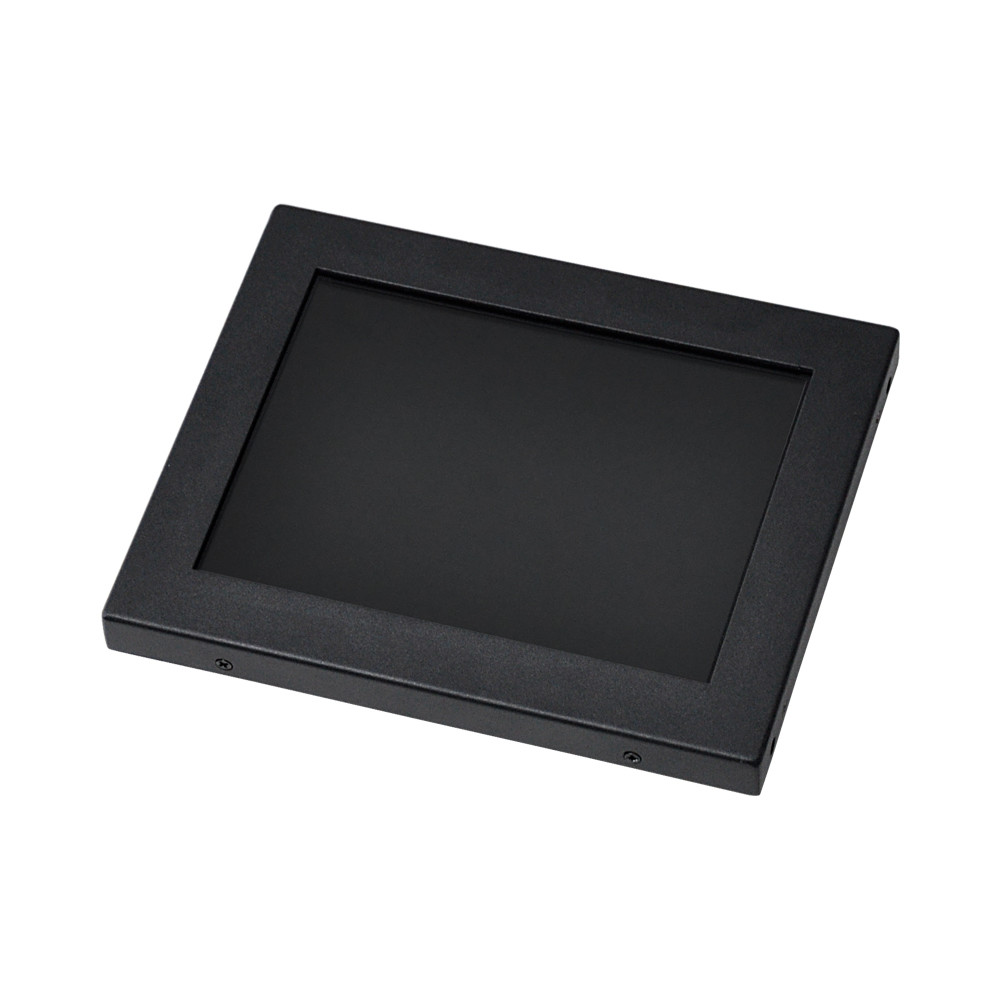

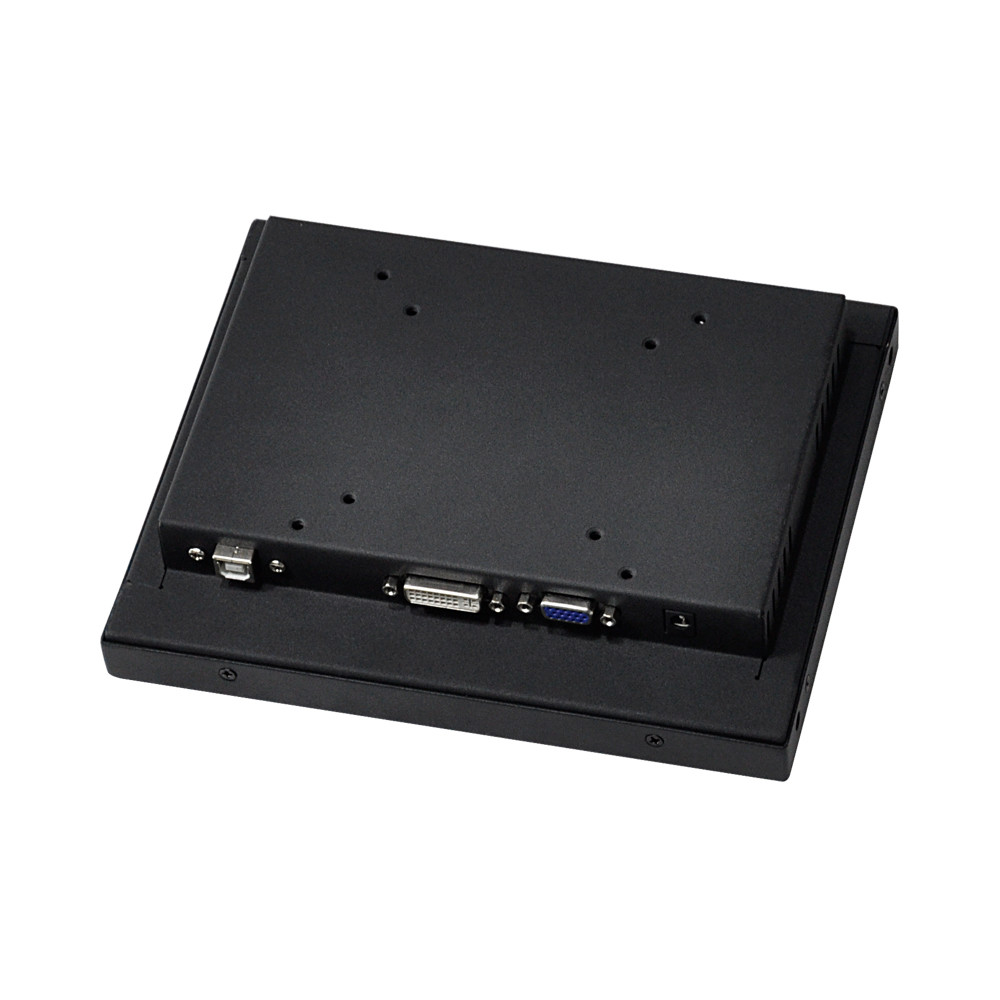

8 inch Capacitive display monitor pictures:

Vandalproof PCAP Touch Monitor 8 Inch With Open Frame Luminance
