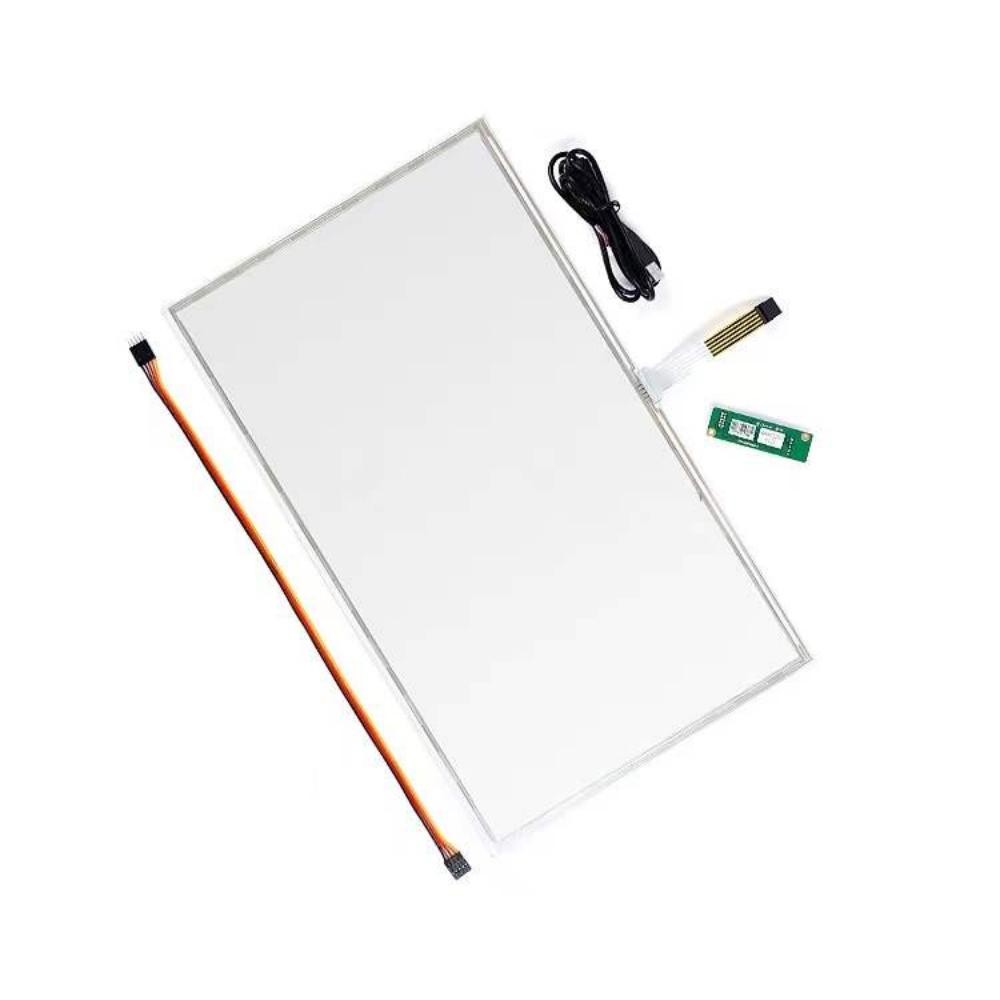

5 wire 18.5 inch touch screen glass Resistive touch screen usb touch control board

5 Wire Resistive Touch Screen Works

CJTouch 5-wire resistive touch touch screen is a two-layer structure, the two materials (film or glass) having attached ITO having a gap between them, so as to face each other ITO layer, pressed down and touch as top two when an ITO layer contact input will be made, there is the point gap between the ITO layer insulator called the top and bottom, which are spaced points to prevent accidental contact with the ITO layer (input), fails, when the top of the ITO film is pressed and when making contact with the bottom of the glass, the contact area can be detected via electrical conduction. Notable features five-wire resistive is that only the bottom of the glass has been detected function, even if the top of the ITO film is destroyed, the detection function is not affected (in addition to the damaged area).

Product Application:

• Telecommunication Devices
• Consumer Products
• Technical Equipment
• Office Automation
• Home Appliances
• Automobile Display
• IT Products
• Medical Equipment

Customized Resistive Touch Screen:

• Our resistive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.
• We are also capable of doing the customized shape needed to suit for customer's mechanical design.
• With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

Main Feature

• High accurate
• Pressure sensitive
• Can responds to any input device
• Short response time
• Compact size for easy integration
• Customization available

Specification of Product

Picture of Product

Technical Drawing

Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services.
Experience:
Established in 2011 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled SCREENS, PC, MONITORS ,TOUCH FOIL and KIOSKS.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
-Single & Multi-touch screens (custom sizes available)
-Single & Multi-touch monitors (custom sizes and functions available)
-All-in-one computers

-High brightness LCD panels

-Outdoor Advertising machines
-ODM/OEM services
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology

PCAP Touch foils
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
