32 inch IPS AUO display for digital signage TFT LCD panel with controller board

General description

CJP320HVN02.0 is a 32.0 inch LCD module using A-SI TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight drive, no touch. The screen library summarizes its typical features as follows: sRGB, landscape mode/portrait mode, white LED backlight, life > 50,000 hours, including LED driver, fog surface. It operates at 0-50 °C, stores at -20 to 60°C, and has a vibration resistance of 1.0g (9.8m /s²). This model is suitable for digital signage applications. According to the information obtained by the screen library, this product was mass-produced in Q4, 2014, and the current production state is in mass production. At present, CJP320HVN02.0 has 27 spot information and 23 supplier information on the screen library, which belongs to the main model of the screen library market. The screen library first established parameters for this model on April 30, 2014, and updated the parameters on September 27, 2019. According to CJTOUCH's product specification for Final Ver6.0 released on March 29, 2018, CJP320HVN02.0 displays a resolution of 1920(RGB)×1080 (FHD), an aspect ratio of 16:9 (WIDTH: height), and pixels arranged in RGB vertical stripes. It has display area dimensions of 698.4×392.85 (W × h) mm, visual dimensions of 703.4×397.9 (W × H) mm, external dimensions of 719.2(W)×413.7(H)×24.8(thick) mm, surface treatment of Haze 2%, Hard coating (3H), product net weight 4.59kgs (Typ.). In terms of backlighting, this product uses a WLED side entry light source with a life of 50K hours, including LED driver. P320hvn02.0 adopts LVDS (2 CH, 8-bit) signal interface, a total of 51 pins, adopts terminal connection, drive screen voltage is 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

Specification

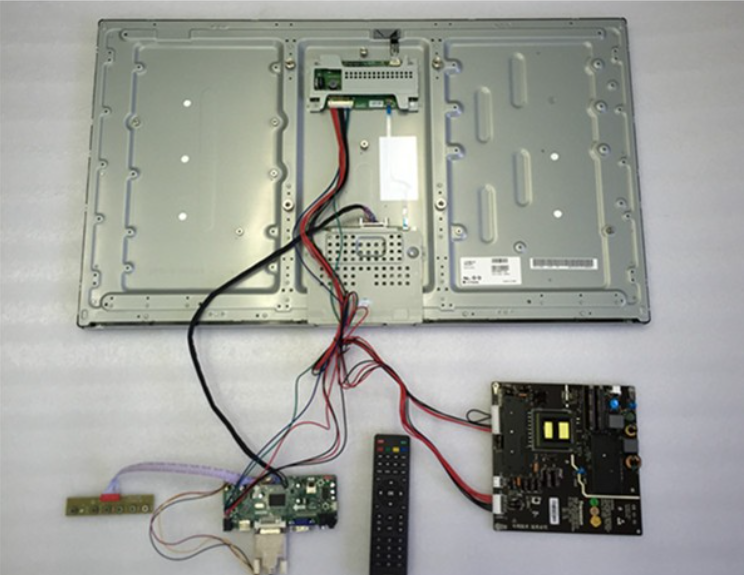

Detail images

Packaging

Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services.
Experience:
Established in 2011 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled SCREENS, PC, MONITORS ,TOUCH FOIL and KIOSKS.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
-Single & Multi-touch screens (custom sizes available)
-Single & Multi-touch monitors (custom sizes and functions available)
-All-in-one computers

-High brightness LCD panels

-Outdoor Advertising machines
-ODM/OEM services
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology

PCAP Touch foils
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
