10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial

Ask Lasest Price
Brand Name :	CJTOUCH
Model Number :	CJ110P-43-SIDE
Certification :	FCC, CE, RoSH
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20000/month
Delivery Time :	5-15 working days

Add to Cart

Product Details
Company Profile

10 Points Nano Touch Foil 43 Inch Nano for Commercial Industrial

43" Touch Screen Monitor Capacitive Nano Commercial Industrial Touch Foil

Transforms any glass/acrylic panel or store window into an interactive touch screen display. Ideal for integration within POS displays, kiosks and industrial grade applications.

General Information

Interface	USB
Transmittance	80%
Tail Direction	Side or Bottom
Ci	Sis
Series	100p, 150p
Driver Type	Free Driver
Calibration Way	Sofeware Calibrate
Packing	Paper Tube

Specification

Detection method	Projected Capacitive Technology (ITO is replace by Metal Mesh Matrix)
Input method	Finger and Capacitive pen
Models	Channels 80P	Channels 110P	Channels 160P
Size range	15-24 inch	24-55 inch	55-86 inch
Number of Sensors	1344	2784	5568
Number of touch points	10/ 20 points
Touch accuracy	<2mm
Speed of Response	<2.5 ms
Arm Rejection	Support
Aspect Ratio	4:3/16:9/16:10,customized size available
Thickness of sensor	<200um
Light transmission	90%
Adhesive	Permanent
Construction	Various thicknesses, Anti-glare, Anti-reflective, Clear, Chemical or Thermal Toughened

Thickness of glass	0-12mm
Interface	USB2.0
Safe Distance	2mm(distance between LED and sensor film)
Surrounding Requirement	Anti-sunlight, Water-proof
Function	Multi touch, Zoom in/out, Rotation
Operating System	Windows 7/8/8.1/10(32 bit / 64 bit), Linux,Android,IOS
HID	HID-USB
Driver and Calibration	Auto installed and calibration driver
Power Consumption	0.5W-2W
Power Supply	5V USB
Operating Temperature	-20ºC to 70ºC
Humidity	0-96%
Life time expectancy	8 Years
Warranty	1 Year
Certifications	UL/CE/ROHS

Systems

Win XP7/8/8.1/10 Home Edition of Windows only supports single touch

Multi touch works on Windows Professional/Enterprise/Ultimate Edition

Android: Open HID-USB, switch off Report Rate Description, input value of Android's VID(Vendor ID) and PID

( Product ID) into IC advanced settings.

Main Features

Light weight, suitable to be laminated to glass, acrylic or photographic film.
Transparent, no frame, durable and safe.
Accurate positioning
No mechanical or pressure-sensitive elements, durable and stable
Not sensitive to outer light, the change of light would not affect.
Detachable, easy for transportation

Details

Application & Contats

Interactive Multimedial Kiosk,
Self Service Terminal,
Information/Queuing/Ticket/Ordering,
Advertising Signage Displayer,
Vending Machine,
Touch All in one Computer PC,
Vending Machine,
ATM,Payment or Bank Device,
Touch Table,Touch TV,
Electronic Education Whiteboard,
AI/Intelligence Robot Equipment etc.

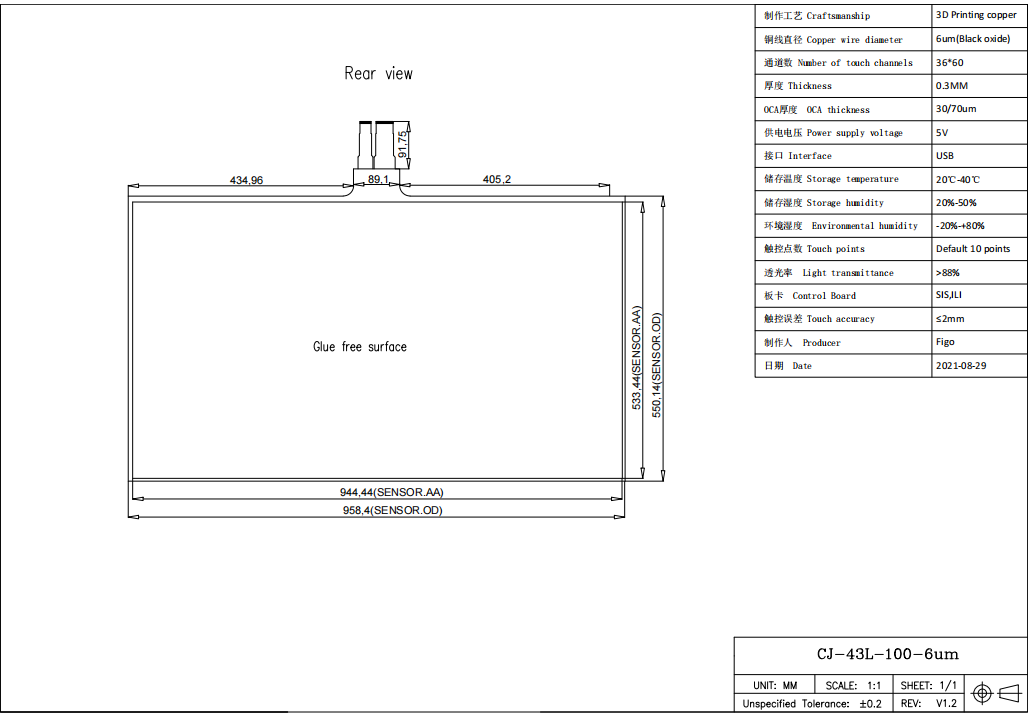

Drawing
