Multitouch Infrared Touch Monitor

Ask Lasest Price
Brand Name :	CJTOUCH
Model Number :	COT238-IPK03
Certification :	CE FCC
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T,
Supply Ability :	5000 PCS per quarter
Delivery Time :	2-3days

Add to Cart

Product Details
Company Profile

Multitouch Infrared Touch Monitor

Multi-touch 23.8 inch Infrared touchscreen monitor High brightness LCD display touch monitor

Infrared Touch screen monitor Feature:
· Industrial Desgin With Excellent Durablity
· IR touch Technology Multi Touch 2-10 Touch Points
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price & Fast Delivery

Our advantage
1.Infrared multi touch frame ,supports 10,20,32,64 precise touch points ,Driver free
2.USB plug and play,Sizes from 15" to 800" (4:3 ,16:9, 16:10)
3.Custom Sizes Available,Easy to Install
4.Waterproof optional,High Stability / Reliability
5.Extremely Durable / Scratch Resistant
6.Compatible with Win7, Win8, Win10, Android, Linux system
7.Simple calibration

Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution

Specification:

General
Model	COT238-IPK03
Series	Dust-proof and metal frame
LCD Type	23.8”Active matrix TFT-LCD
Video Input	VGA HDMI and DVI
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick
	Input (line) voltage: 100-240 VAC, 50-60 Hz
	Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm
Mount Interface	2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)	527.04 × 296.46 mm
Resolution	1920×1080@60Hz
Dot Pitch(mm)	0.2745×0.2745 mm
Nominal Input Voltage VDD	+5V(Typ)
Viewing angle (v/h)	89/89/89/89 (Typ.)(CR≥10)
Contrast	1900/5/4 0:01
Luminance(cd/m2)	250
Response Time(Rising/Falling)	9s/6s
Support Color	10ms/16ms
Backlight MTBF(hr)	16.7M colors
Touchscreen Specification
Type	Cjtouch Infrared(IR) touch screen
Resolution	4096*4096
Light Transmission	92%
Touch Life Cycle	50 millions
Touch Response time	8ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /4A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating Temp.	0～50°C
Storage Temp.	-20～60°C
Operating RH:	20%～80%
Storage RH:	10%～90%

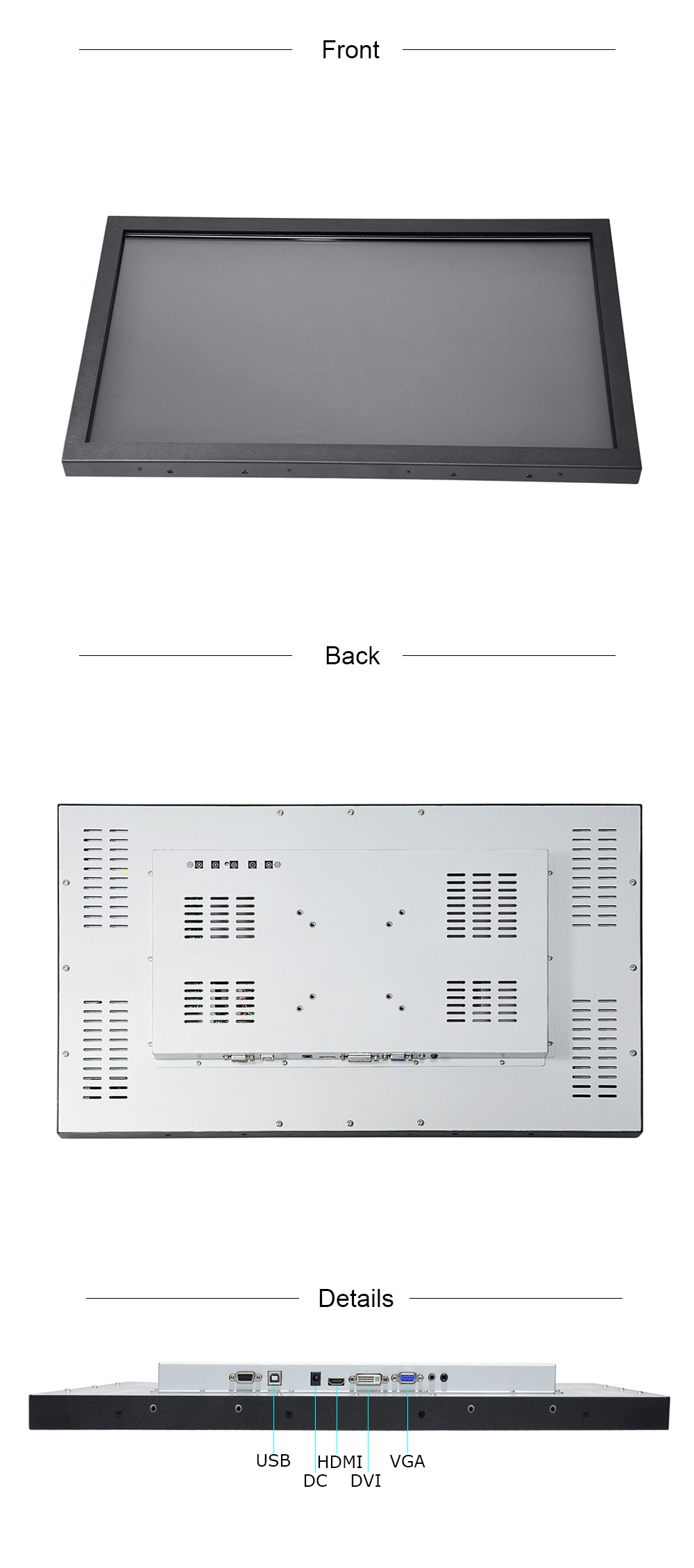

Product Picture

Multitouch Infrared Touch Monitor

Drawing :

Multitouch Infrared Touch Monitor
