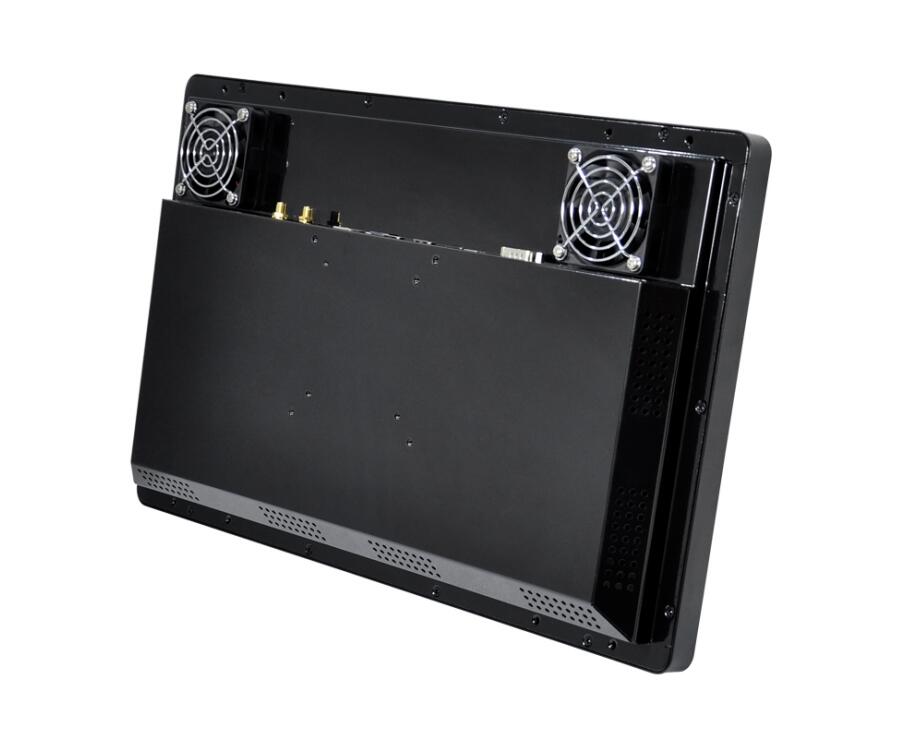

    FCC Multi Touch All In One PC For Kiosk , 18.5'' Capacitive Touchscreen PC

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : CCT185-CFK-RK3288-SS
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    FCC Multi Touch All In One PC For Kiosk , 18.5'' Capacitive Touchscreen PC

    18.5'' Panel PC Capacitive Touchscreen All In One AIO Touch PC Quad Core J1900 I3 I5 I7 For Kiosk

    Features:

    • Optional size from 10.1'' 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27'' 32'' 43'' 55'' 65''
    • With anti vandal PCAP touch panel, support 10 points touch
    • L G, Sam sung, AU O, BO E, ect LCD LED Panels
    • IP65 touch screen sur face waterproof sealled
    • CPU optional J1900/I3/I5/I7/A-ndroid
    • RAM 2GB , 4GB , 8GB , 16GB , 16GB , 32GB Optional
    • 32GB , 64GB , 128GB , 256GB , 512GB ect SSD Optional
    • VESA mounting and rear mounting
    • Competitive price and fast delivery
    • Our AIO Touch PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
    • Warranty: 1 year
    • 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch screen all in one panel pc

    Specifications:

    General Information
    ModelCCT185-CFK-RK3288-SS
    CPUWins J1900 / I3/I5/I7/ Android optional
    RAMFrom 2GB - 32GB
    MemoryFrom 32GB -512GB SSD
    InterfaceUSB, COM, RJ45, HD-MI, VGA
    Power supplyType: External brick
    Input (line) voltage: 100-240 VAC, 50-60 Hz
    Output voltage/current: 12 volts 5A
    Mount Interface

    1)VESA 75mm and 100mm

    2) Mount bracket, horizontal or vertical

    OSWins 7/8/10 or Android
    LCD Specification
    Active area(mm)

    409.8×230.4 mm

    Resolution

    1366(RGB)×768 WXGA 84PPI

    Pixel Pitch(mm)

    0.300×0.300 mm (H×V) [84PPI]

    Nominal input voltage VDD

    +5V

    Viewing angle(v/h)

    85/85/80/80 (Typ.)(CR≥10)

    Contrast

    1000:1

    Luminance (cd/m2)250 cd/m² (Typ.)
    Response time

    3.6/1.4 (Typ.)(Tr/Td) ms

    Support color

    16.7M , 72% NTSC

    Backlight MTBF(hr)30000

    Touch screen Specification

    Type

    CJTouch projected capacitive touch screen

    Multi touch

    10 points touch

    Touch Life Cycle

    10 millions

    Touch Response time

    8ms

    Touch System Interface

    USB interface

    Power consumption

    +5V@80mA

    External AC Power Adapter

    Output

    DC 12V /5A

    Input

    100-240 VAC, 50-60 Hz

    MTBF

    50000 hr at 25°C

    Environment

    Operating temp.0~50°C
    Storage temp.-20~60°C
    Operating temp.20%~80%
    Stroage RH10%~90%

    Components:

    Power Cord with Switching Adapter *1 Pcs,

    Bracket*2 Pcs
