Small size 8.4 inch PCAP Touch Screen Capacitive touch screen
technologies PCT
PROJECTED CAPACITIVE
In case of projected capacitive touches, the conductive ITO layer
is applied to the rear of the glass. The ITO layer then projects
the capacitive field through the glass.
ADVANTAGES OF CAPACITIVE TECHNOLOGY
As a result of the technology, no force is required to actuate a
touch event. Thus, the touch can be operated very quickly.
GLOVES
Operation with gloves is possible to a limited extent. Electrically
conductive gloves are 100% compatible. Very thin, non-conductive
gloves (medical gloves) are also compatible. As soon as thick
gloves are required, preference shall be given to resistive touch
technology.
Could you want to make a Smart Lockers ?
The Small size PCAP Touch Screen will help you make a Touch Monitor
, reduce labor coats though automated pickup .
Which is better capacitive or resistive touch screen?
If you want increased screen contrast and clarity, capacitive touch
screens are the preferred option over resistive screens, which have
more reflections due to their number of layers. Capacitive screens
are also far more sensitive and can work with multi-point inputs,
known as 'multi-touch'.
Typical Application
- CONTROL PANELS
- INDUSTRIAL AUTOMATION
- DIGITAL SIGNAGE
- GAMING MACHINES
- KIOSKS – INDOOR
- INFORMATION KIOSKS
- ATMS
- MONITORS
- ALL-IN-ONE PCS
Markets
- INDUSTRIAL
- TRANSPORTATION
- RETAIL
- ENTERTAINMENT
Specification of Product
| Technical specification |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels |
| Application | It's applied in ordinary electric equipments and automatic office
facilities |
| Cover Lens Specification |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for
once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
Picture of Product

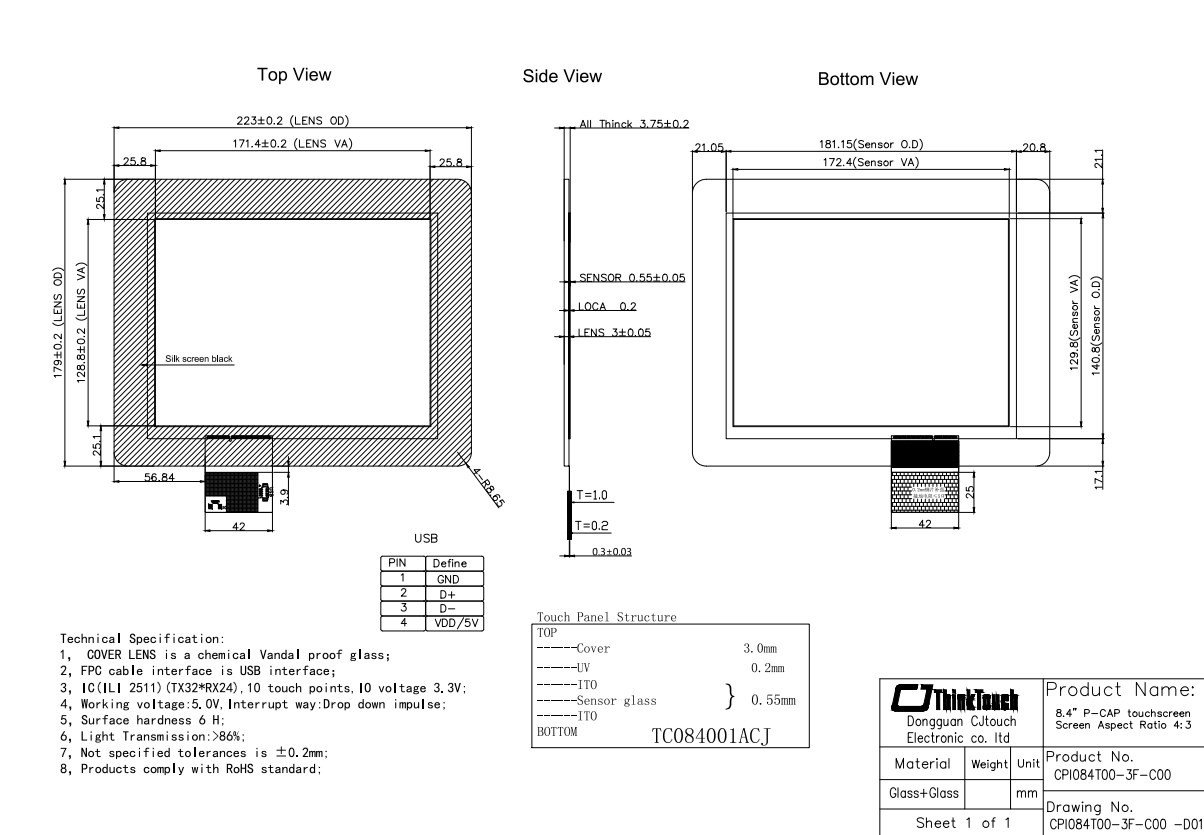

Technical Drawing
